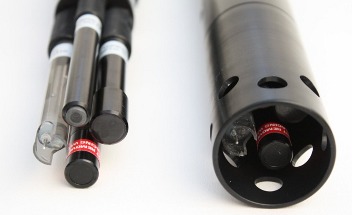

The AP-2000 Probe Equipped with a Range of Standard Parameters

• Optical dissolved oxygen (DO)
• Specific electrical conductivity (EC)
• Absolute EC
• pH
• Oxidation reduction potential (ORP)
• Total dissolved solids (TDS)
• Resistivity
• Salinity
• Seawater specific gravity (SSG)
• Temperature

There are 3 simple choices to make to customize the probe. The probe comes with 1 ion-selective electrode (ISE) socket and 1 optical electrode socket, plus you have the option to add a depth sensor! Probes are supplied with blanking plugs in the optional electrode ports as standard. Simply unscrew these to add your extra electrodes.

Your Options:

Option 1

Do you want to measure depth?

Option 2

Which of the 5 ISE electrodes would you like to use?

Option 3

Which of the 7 optical electrodes would you like to use?

All Aquaprobes feature the new AquaConn fully metal connectors

The AP-2000 features the all-metal AquaConn connectors. These high specification connectors feature large metallic key for a rigid fit, recessed pins for extra protection during pairing, guide markers on each part of the connector to allow you to instantly push the pair together in the correct alignment. AP-2000 connectors are specified to 30m and AP-7000 connectors are specified to 100m.

All AquaConn connectors are supplied with various lengths of KevlarCore cable.

Aquaread's KevlarCore cables double up as a support cable, no need for extra support wires here. The cable has a Kevlar support line running along its length that is anchored firmly to the Aquaconn connectors at each end. These cables are designed to withstand the harshest environments.

The advantages/improvements are as follows:

• A standard set of parameters come with the probe (AP-2000); EC, Optical DO, pH, ORP, Temperature,
• There is an option to add depth to the probe (AP-2000-D)
• There are now 2 additional, user configurable sensor ports on this probe. One can accept one of our new ISE (ion selective electrodes) and one can accept one of our new Optical sensors. This means the AP-2000 now houses the most sensors in a probe at 2” diameter, and allows user configuration for different applications. The user can change sensors at any timer.
• The AP-2000 does not have cable hard wired into the probe; it uses extension leads that connect the meter to the probe. This means that if the cable is damaged in any way that is not repairable, the probe does not get written off, the extension cable is simply replaced.
• The new cable is thicker and stronger, it also features our new KevlarCore. It has Kevlar running along the length of the cable to provide internal support for the probe when attached to long cable lengths, meaning there is now no need for messy external support cables.
• The new all metal AquaConn connectors that feature on the AP-2000, the extension cables and the new look GPS Aquameter, are specified to up to 100m depth. They offer a big improvement in durability, submergence and strength over the older plastic connectors.
• The new look GPS Aquameter is now cast in black (purely aesthetic). The new look meter features V4.xx software and offers a new global parameter stability indicator, which tells you when ALL parameters are stable via an on screen logo and a loud beep; so you know when to take your reading. This version also allows the user to change their sensor configuration when they update their sensors connected to the Auxiliary sockets.
• Finally an update to the removable sleeve of the Aquaprobe, the whole sleeve can now unscrewed by hand, we have completely removed the 4 small screws, making it much easier to service and clean your probe.
