Jun 8 2010
Eco Boilers offers the LP 20 Thermopellet pellet burning boiler. This compact boiler incorporates all the features of advanced type large-sized pellet boilers. The LP 20 pellet burning boiler incorporates a 70 kg pellet tank and consumes fuel in the range of 1.0–5.0 kg/h.
This boiler includes an automatic pellet ignition feature for safe igniting of pellets, a self cleaning stainless steel container, and a control panel with advanced programmable electronic controls, a standard circulation pump and an expandable tank.

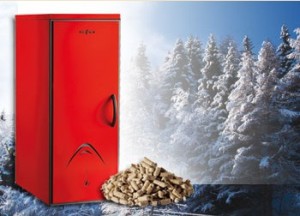

LP 20 Thermopellet Pellet Burning Boiler
The external width x height x depth dimension of the LP20 pellet boiler is 525 mm x 1360 mm x 941 mm and weighs 285 kg. The outlet fumes pipe of this boiler measures 120 mm and its air intake pipe measures 60 mm. This pellet boiler while producing the maximum thermal output of 23.0 kW utilizes 19.6 kW for heating the water and 3.4 kW for heating the air. At its minimum thermal output level of 4.5 kW, it uses 4.0 kW for water heating purposes and 0.5 kW is used for heating the air. This pellet boiler has a tank capacity to hold 100 L water. The central heating water volume of this model is 32 L and its maximum operating water pressure is 3 bar.
This pellet boiler offers up to 92.5% performance at maximum thermal output. The LP 20 Thermopellet pellet burning boiler provided by Eco Boilers utilizes a nominal electric power of 350 W. This pellet boiler is available in a range of six colors.
Source: http://www.ecoboilers.ie
