Jul 9 2010
Magnum Energy offers the MM-AE Series Inverter/Charger. The inverter/chargers are available in MM612AE, MM1512AE and MM1524AE models with changes in specification.
The MM1524AE inverter/charger is a customized sine wave inverter offering cost effective solutions for low level renewal energy applications. This light weight and flexible charger is easy to use and provides dependable service base to off grid and back up power energy systems. The inbuilt PFC charger included in the inverter/charger consumes only 7.5 A per 50 A while compared to 12.5 A consumption by other standard chargers.

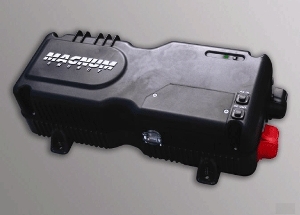

MM-AE Series Inverter/Charger
This module is attractively made by using a contemporary hourglass type ABS plastic top and die cast aluminum bottom and utilizes its base as a heat sink to operate in increased temperatures. The MM1524AE inverter/charger module offered by Magnum Energy extends flexible mounting options. The standard 20 A transfer relay incorporated in the module passes the AC power when connected to a grid or generator. This compact module can be installed in limited spaces and fan cooled. This module automatically shuts down the operations when the temperature exceeds the pre set limit and restarts again on ideal temperature conditions. For the purpose of saving the battery during low and high voltage conditions the charger/inverter automatically shuts down the operation of the batteries till normalcy is restored.
The input battery voltage range of MM1524AE inverter/charger module is 18 to 32 VDC, its nominal AC output voltage is 120 VAC ± 5% and its output frequency and accuracy is 60 Hz ± 0.1%. The continuous output of this module at 25° C (with 1.0 PF) is 1500 VA. The maximum input battery current of this module is 100 ADC and its peak efficiency is 91%. This module has a length x width x height physical dimension of 42 cm x 21 cm x 12 cm and weighs 10 kg.
Source: http://www.magnumenergy.com
