Apr 23 2010
Kuster Company offers K10 Surface Unit wellhead surface data logger. This data logger is used for accurate monitoring of various pressures and temperatures. The K10 Surface Unit is designed to monitor two pressure inputs and one exterior temperature through an RTD. The silicon crystal technology used in the pressure transducer provides correct and consistent measurement.

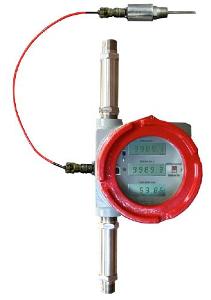

K10 Surface Unit wellhead surface data logger
The K10 Surface Unit provided by Kuster Company is designed to offer a pressure range up to 10,000 psi, an accuracy of 0.024% F.S, a resolution of 0.0003% F.S., and a drift of <3 psi/year. This model has an operating temperature of -40 to 50°C, an accuracy of ±0.25°C and a resolution of 0.001°C. The K10 Surface Unit has a power requirement of 3.6 VDC and uses a piezoresistive type of transducer. This unit is designed to take up to 1,220,700 sets of samples with a minimum sample rate of 3 s.
K10 Surface Unit has a programmable sampling rate feature and large-sized LCD display for easy viewing. This model consumes less power and is available with optional rechargeable batteries. This model is offers a number of pressure ranges.
Source: http://www.kusterco.com
