Kipp & Zonen manufactures the CMP6 and CMP11 Albedometer kits.
CMP6 Albedometer Kit

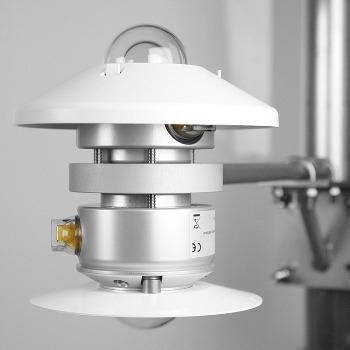

An albedometer is designed by using two independent CMP6 pyranometers having a CMF1 mounting plate and rod and glare screen equipment for the lower pyranometer.
The CMP6, an ISO 9060:1990 First Class albedometer kit, is suitable for defining the ratio of irradiance reflected to the irradiance received by a surface (albedo). The outcome is seen on a scale ranging from 0 (no reflection) to 1 (total reflection).
Since two independent pyranometers are provided with a mounting fixture (rod and plate) and a glare screen for the lower pyranometer, different configurations are possible.
The CMB1 mounting bracket can be used to mount the rod to a wall or pole.
If the CMF1 mounting fixture is swapped with the CMF4 model, the CVF4 ventilation unit can be used with the lower and/or upper pyranometers. However, when a lower ventilation unit is used, the glare screen cannot be added.
In case a lower CVF4 is used, a special glare screen is available.
Its quality and economical features make the CMP6 albedometer kit suitable for hydrology, meteorology and agricultural applications.
Specifications
Table 1. Source: Kipp & Zonen
| |
|
| Spectral range (50% points) |
285 to 2800 nm |
| Sensitivity |
5 to 20 µV/W/m² |
| Maximum operational irradiance |
2000 W/m2 |
| Response time (95%) |
< 18 s |
| Zero offset A |
< 10 W/m² |
| Zero offset B |
< 4 W/m² |
| Temperature dependence of sensitivity (-10 ºC to +40 ºC) |
< 4 % |
| Field of view |
Upper 180, lower 170 |
| Operational temperature range |
-40 °C to +80 °C |
CMP11 Albedometer Kit
The CMP11 Albedometer Kit from Kipp & Zonen is an upgrade in performance from the CMP6 kit. It is designed for scientific applications, for which accuracy has to match maximum standards.
The CMP11, an ISO 9060:1990 Secondary Standard albedometer kit, is designed to measure the ratio of irradiance reflected to the irradiance received by a surface (albedo). The outcome is seen on a scale ranging from 0 (no reflection) to 1 (total reflection).
Since two independent pyranometers are provided with a mounting fixture (rod and plate) and a glare screen for the lower pyranometer, different configurations are possible.
The CMB1 mounting bracket can be used to mount the rod to a wall or pole.
If the CMF1 mounting fixture is swapped with the CMF4 model, the CVF4 ventilation unit can be used with the lower and/or upper pyranometers. In case the lower CVF4 is used, a special glare screen is available.
Its quality and economical features make the CMP11albedometer kit suitable for hydrology, meteorology and agricultural applications.
Specifications
Table 2. Source: Kipp & Zonen
| |
|
| Classification to ISO 9060:1990 |
Spectrally flat Class A |
| Sensitivity |
7 to 14 µV/W/m² |
| Maximum operational irradiance |
4000 W/m2 |
| Response time (95%) |
< 5 s |
| Spectral range (50% points) |
285 to 2800 nm |
| Zero offset A |
< 7 W/m² |
| Zero offset B |
< 2 W/m² |
| Temperature response |
(-10 °C to +40 °C) <1 |
| Field of view |
Upper 180° lower 170 ° |
| Operational temperature range |
-40 °C to +80 °C |
