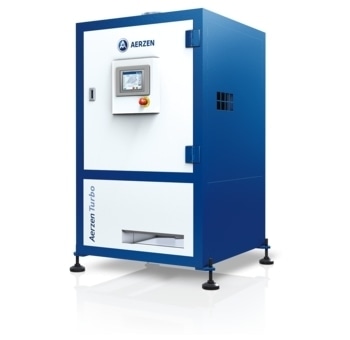

Turbo Blower Unit for Medium and Small Volume Flows - TB

Designed solely for small and medium volume flows, AERZEN’s frequency-controlled TB Turbo blowers can offer highest energy efficiency. Their advanced compressor technology allows them to be ideal accompaniments to the AERZEN collection: the appropriate instrument is now available for all levels of volume flow.

The Benefits of Aerzen Turbo TB at a Glance:

  • Ready-to-run deliverables
  • Highest energy efficiency, up to 30% savings
  • Direct measurement of air volume
  • Air foil bearings for extreme demands
  • Permanent magnet synchronous motor
  • Advanced controls
  • Innovative frequency inverter, active surge protection (high rise to surge)

Technical Data

. .
Type of technology: Turbo blowers
Design: Positive pressure
Volume flow: 300 to 6,000 m3/h
Medium: Air, Neutral gases
Conveying/compression: Oil-free
Positive pressure: Max. 1,000 mbar

Properties

Since 1911, AERZEN has been creating Turbo blowers, and in the years since then, the company has thrived in reaching new heights by upgrading the technology of these units. New standards have been realized with the expertise that has been attained. These standards can be seen in the mechanisms, performance features, and in all the details of the newest Turbo, the Turbo Generation 5.

100% Turbo

  • From 300 m3/hour to 6,000 m3/hour
  • Variable frequency control
  • For mid and high airflows
  • 100% oil-free

Efficient Peak Values

  • Up to 80% efficiency
  • Up to 30% energy savings
  • Exceptionally efficient individual parts
  • Extremely low maintenance costs
  • Control range from 40-100%

Power Motor

  • PMS – Permanent Magnet Synchronous Motor
  • Amazing performance and response times
  • Stainless steel impeller
  • No extra magnetization energy required
  • Extremely efficient during partial load operation

Air Foil Bearings for Extreme Demands

  • Absorbs even extreme pressure variations
  • Vibration-free and contact-free use
  • No components that would be subject to wear
  • Development from the aerospace sector
  • Low energy idle mode
  • 100% free of maintenance

Applications

Precise Load Cycle Calibration: For a New Level of Efficiency in Aeration Tanks

When users comprehend that energy usage in standard wastewater treatment plants can be equal to 80% of total costs, then the impact becomes obvious: every single percentage point in savings counts, with regards to both the cost and the environment.

The performance principles for the Aerzen Turbo Generation 5 denote peak effectiveness in waste water tanks. Numerically, this would mean energy savings of up to 30% with up to 80% operational efficiency, which is truly remarkable. AERZEN feel that this is just the most responsible way of handling resources in wastewater treatment plants.
