Apr 22 2010
Affordable Solar offers the NE-80EJEA solar panel manufactured by SHARP. This solar module uses 125 mm multi-crystal silicon solar cells with a power conversion efficiency of 12.6%. The bypass diodes used in the module reduces the drop in power production during low light conditions. The solar panel used in the NE-80EJEA model is white in color, made using tempered glass with EVA lamination and fixed in robust aluminum frame for outdoor use. The junction box used in the module provides easy connectivity.

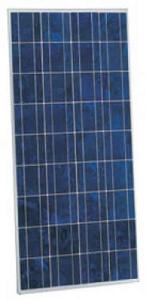

SHARP NE-80EJE Solar Panel
The SHARP NE-80EJEA solar panel provided by Affordable Solar has 36 cells connected in series. The multi-crystal silicon solar cells used in this module has increased cell conversion efficiency of 14.11%. The length × width × depth measurement of the SHARP NE-80EJEA solar panel is 1200 mm x 537 mm x 46 mm and weighs 11.36 kg. This module is designed to offer an open circuit voltage of 21.3 V, a maximum power voltage of 17.1 V, a short circuit current of 5.3 A, a maximum power current of 4.67 A, a maximum power of 80 W, a minimum power of 72 W. This module has an encapsulated solar cell efficiency of 14.00%, PTC rating of 70.24 W and a maximum system voltage of 600 VDC.
The SHARP NE-80EJEA solar panel meets the quality standard requirements of UL 1703 and is manufactured under ISO 9001 certified manufacturing conditions.
Source: http://www.affordable-solar.com
