The Development of Hydrogen Fuel Cells for Vehicles is Another Step Closer

The development of hydrogen fuel cells for vehicles - the ultimate green dream in transportation energy - is another step closer. Researchers with the U.S. Department of Energy’s Lawrence Berkeley National Laboratory (Berkeley Lab) and Argonne National Laboratory (ANL) have identified a new variation of a familiar platinum-nickel alloy that is significantly the most active oxygen-reducing catalyst ever reported.

Introduction

The slow rate of oxygen-reduction catalysis on the cathode (a fuel cell’s positively charged electrode) has been a primary detrimental factor during the development of the polymer electrolyte membrane (PEM) fuel cells favored for use in vehicles powered by hydrogen.

Vojislav Stamenkovic, a scientist with dual appointments in the Materials Sciences Division of both Berkeley Lab and ANL has stated that “The existing limitations which face PEM fuel cell technology applications in the transportation sector could be eliminated with the development of stable cathode catalysts with several orders of magnitude increase in activity over today’s state-of-the-art catalysts, and that is what our discovery has the potential to provide”.

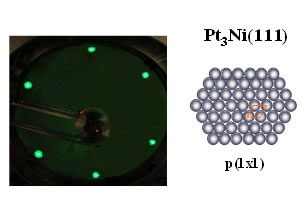

The green dots in this Low Energy Electron Diffraction pattern for a single crystal of Pt3Ni(111) reveal a tightly packed arrangement of surface atoms that wards off platinum-grabbing hydroxide ions and boosts catalytic performance.

Figure 1. The green dots in this Low Energy Electron Diffraction pattern for a single crystal of Pt3Ni(111) reveal a tightly packed arrangement of surface atoms that wards off platinum-grabbing hydroxide ions and boosts catalytic performance.

Stamenkovic and ANL senior scientist Nenad Markovic collaborated on a paper called  ‘Improved Oxygen Reduction Activity on Pt3Ni(111) via Increased Surface Site Availability’. The study on which the paper is based identified a platinum-nickel alloy which increased the catalytic activity of a fuel cell cathode by 90 times that of the platinum-carbon cathode catalysts used at the tim.

“This surface sets a new bar for catalytic activity in PEM fuel cells and makes it feasible to meet U.S. Department of Energy (DOE) targets for platinum-specific power densities without a loss in cell voltage,” Stamenkovic said.

In addition to Stamenkovic and Markovic, other authors of the ‘Improved Oxygen Reduction Activity’ are Philip Ross and Bongjin Mun of Berkeley Lab, Ben Fowler and Christopher Lucas of England’s University of Liverpool, and Guofeng Wang, of the University of South Carolina.

Most Efficient and Clean Technology for Generating Electricity

By converting chemical energy into electrical energy without combustion, fuel cells represent perhaps the most efficient and clean technology for generating electricity. This is especially true for fuel cells designed to directly run off hydrogen, which only produce water as a byproduct. The hydrogen-powered fuel cells most associated with use in vehicles are PEMs  (also known as “proton exchange membrane fuel cells”). This is because they can deliver high power in a relatively small, light-weight device. Unlike batteries, PEMs do not require recharging, but rely on a supply of hydrogen and access to oxygen from the atmosphere.

PEMs have been used in NASA’s space program, but they remain far too expensive for use in cars or most other Earth-bound applications. The biggest cost factor is their dependency on platinum, which is used as the cathode catalyst. A PEM consists of a cathode and an anode (the negatively charged electrode) that are positioned on either side of a polymer electrolyte membrane.  This is a specially treated substance that conducts positively charged protons and blocks negatively charged electrons.

How Do PEM Fuel Cells Work?

Like other types of fuel cells, PEMs carry out two reactions - an oxidation reaction at the anode and an oxygen reduction reaction (ORR) at the cathode. For PEMs, this means that hydrogen molecules are split into pairs of protons and electrons at the anode. While the protons pass through the membrane, the blocked electrons are conducted via a wire (the electrical current), through a load and eventually onto the cathode. At the cathode, the electrons combine with the protons that passed through the membrane plus atoms of oxygen to produce water. The oxygen (O) comes from molecules in the air (O2) that are split into pairs of O atoms by the cathode catalyst.

PEM fuel cells consist of electrodes containing a platinum catalyst and a solid polymer electrolyte. By splitting hydrogen molecules at the anode, and oxygen molecules at the cathode, PEM fuel cells generate an electrical current with only heat and water as a by-product.

Figure 2. PEM fuel cells consist of electrodes containing a platinum catalyst and a solid polymer electrolyte. By splitting hydrogen molecules at the anode, and oxygen molecules at the cathode, PEM fuel cells generate an electrical current with only heat and water as a by-product.

Applications of PEM Fuel Cells

Stamenkovic stated that “Massive application of PEM fuel cells as the basis for a renewable hydrogen-based energy economy is a leading concept for meeting global energy needs. Since the only by-product of PEM fuel cell exploitation is water vapor, their widespread use should have a tremendously beneficial impact on greenhouse gas emissions and global warming.”

The Challenge is Platinum

A challenge in the development process is the need to use platinum. While pure platinum is an exceptionally active catalyst, it is quite expensive and its performance can quickly degrade through the creation of unwanted by-products, such as hydroxide ions. Hydroxides have an affinity for binding with platinum atoms and when they do,  they take those platinum atoms out of the catalyst. As this platinum-binding continues, the catalytic ability of the cathode erodes. Consequently, researchers have been investigating the use of platinum alloys in combination with a surface enrichment technique. Under this scenario, the surface of the cathode is covered with a “skin” of platinum atoms, and beneath are layers of atoms made from a combination of platinum and a non-precious metal, such as nickel or cobalt. The sub-surface alloy interacts with the skin in a way that enhances the overall performance of the cathode.

Platinum Alloy Solved the Problem

For this latest study, Stamenkovic, Markovic and colleagues created pure single crystals of platinum-nickel alloys across a range of atomic lattice structures in an ultra-high vacuum (UHV) chamber. They then used a combination of surface-sensitive probes and electrochemical techniques to measure the respective abilities of these crystals to perform ORR catalysis. The ORR activity of each sample was then compared to that of platinum single crystals and platinum-carbon catalysts.

The researchers identified that the platinum-nickel alloy configuration Pt3Ni(111) had the highest ORR activity that has ever been detected on a cathode catalyst – 10 times better than a single crystal surface of pure platinum (111), and 90 times better than platinum-carbon. In this (111) configuration, the surface skin is a layer of tightly packed platinum atoms that sits on top of a layer made up of equal numbers of platinum and nickel atoms. All of the layers underneath those top two layers consist of three atoms of platinum for every atom of nickel.

According to Stamenkovic, the Pt3Ni(111) configuration acts as a buffer against hydroxide and other platinum-binding molecules, blunting their interactions with the cathode surface and allowing for far more ORR activity. The reduced platinum-binding also cuts down on the degradation of the cathode surface.

Stamenkovic stated “We have identified a cathode surface that is capable of achieving and even exceeding the target for catalytic activity, with improved stability for the cathodic reaction in fuel cells. Although the platinum-nickel alloy itself is well-known, we were able to control and tune key parameters which enabled us to make this discovery. Our study demonstrates the potential of new analytical tools for characterizing nanoscale surfaces in order to fine-tune their properties in a desired direction.”

Stamenkovic said that the next steps will be to engineer nanoparticle catalysts with electronic and morphological properties that mimic the surfaces of pure single crystals of Pt3Ni(111).

Acknowledgment

This research was funded by the U.S. Department of Energy’s Hydrogen Program. It was also supported through funding by General Motors.

Source: Lawrence Berkeley National Laboratory
