In sites where plant space is at a premium, customers may choose to install their electrolyzers outside. In other cases, customers may prefer to configure an electrolyzer for a more turnkey operation. To fulfill those requirements, Nel Hydrogen recommends containerization.

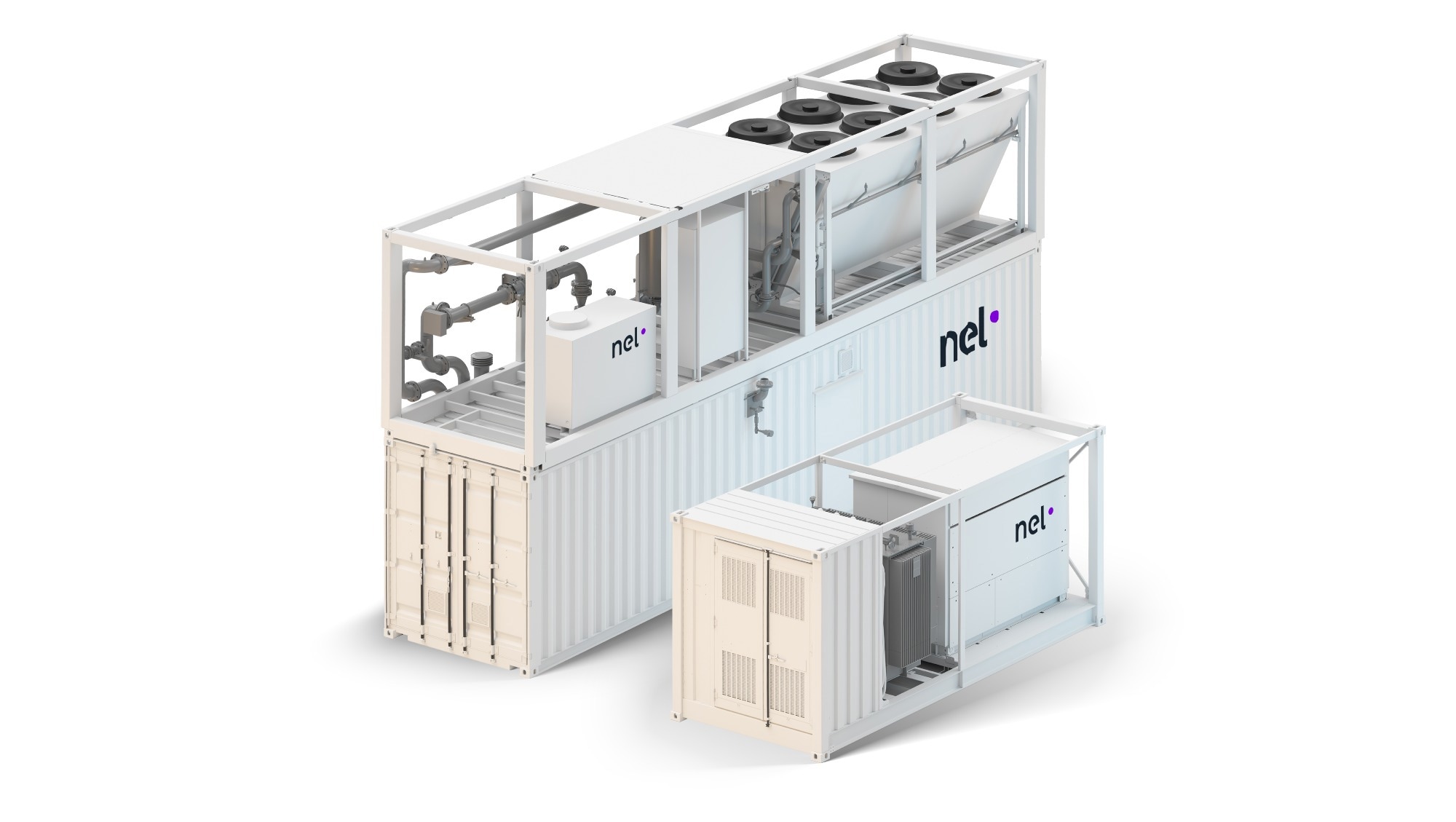

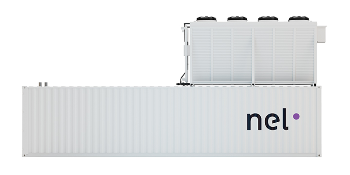

The M Series MC250 and MC500 units are supplied and placed in free-standing containers for ultimate flexibility.
Containerized M Series electrolyzers can generate up to 492 Nm3/hour of hydrogen gas at 99.9995% purity on-demand. Common applications include industrial process gas, renewable energy storage, and hydrogen fueling.
Features
- Pure hydrogen at process pressure – up to 30 barg (435 psig) hydrogen and 99.9995% purity
- Cost-effective hydrogen supply – tracks electric costs
- Increased safety – caustic chemicals are not used
- Virtually zero stored hydrogen – removes the hazard of flooding the space
- Large capacity with minimal footprint – only a fraction of space needed compared to storing large volumes of gas or liquid hydrogen
- Dependable supply of hydrogen—field-proven reliability
- Containerized design – versatile plant configurations
- Automated – safe operation without manual involvement
Specifications
Source: Nel Hydrogen
| Specifications |
MC250 |
MC500 |
| Net Production Rate |
246 Nm3/h (9,352 SCF/h) – 531 kg/24 h |
492 Nm3/h (18,704 SCF/h) – 1,062 kg/24 hh |
| Turndown Range |
10 to 100% |
10 to 100% |
| Power Consumption at Stack at 100% Capacity1 |
4.7 kWh/Nm³ – 53.2 kWh/kg |
4.7 kWh/Nm³ – 53.2 kWh/kg |
| Purity – with optional high purity dryer |
99.999+% |
99.999+% |
| O2-Content in H2 |
<1 ppm v |
<1 ppm v |
| H2O-Content in H2 |
<5 ppm v |
<5 ppm v |
| Delivery Pressure |
30 barg (435 psig) |
30 barg (435 psig) |
|
Dimensions
Electrolyser Enclosure – W x D X H
Power Supply Enclosure – W x D X H
|
12.2 m x 2.5 m x 3 m
(40 ft x 8 ft x 9.9 ft)
6.1 m x 2.5 m x 2.6 m
(20 ft x 8 ft x 8.5 ft)
|
12.2 m x 2.5 m x 3 m
(40 ft x 8 ft x 9.9 ft)
6.1 m x 2.5 m x 2.6 m
(20 ft x 8 ft x 8.5 ft)
|
| Ambient Temperature (Low and High Ambient Temperature Options Available |
-20 to 40ºC (-4 to 104ºF) |
-20 to 40ºC (-4 to 104ºF) |
| Electrolyte |
Proton Exchange
Membrane |
Proton Exchange
Membrane |
| Feed Water Consumption |
0.9 l/Nm3 |
0.9 l/Nm3 |
For reference only—specifications are subject to change. Customers can contact Nel Hydrogen for solutions that best fit their requirements.
1 Beginning of life and dependent on configuration and operating condition.
2 Plus vent and rooftop equipment, site specific.
