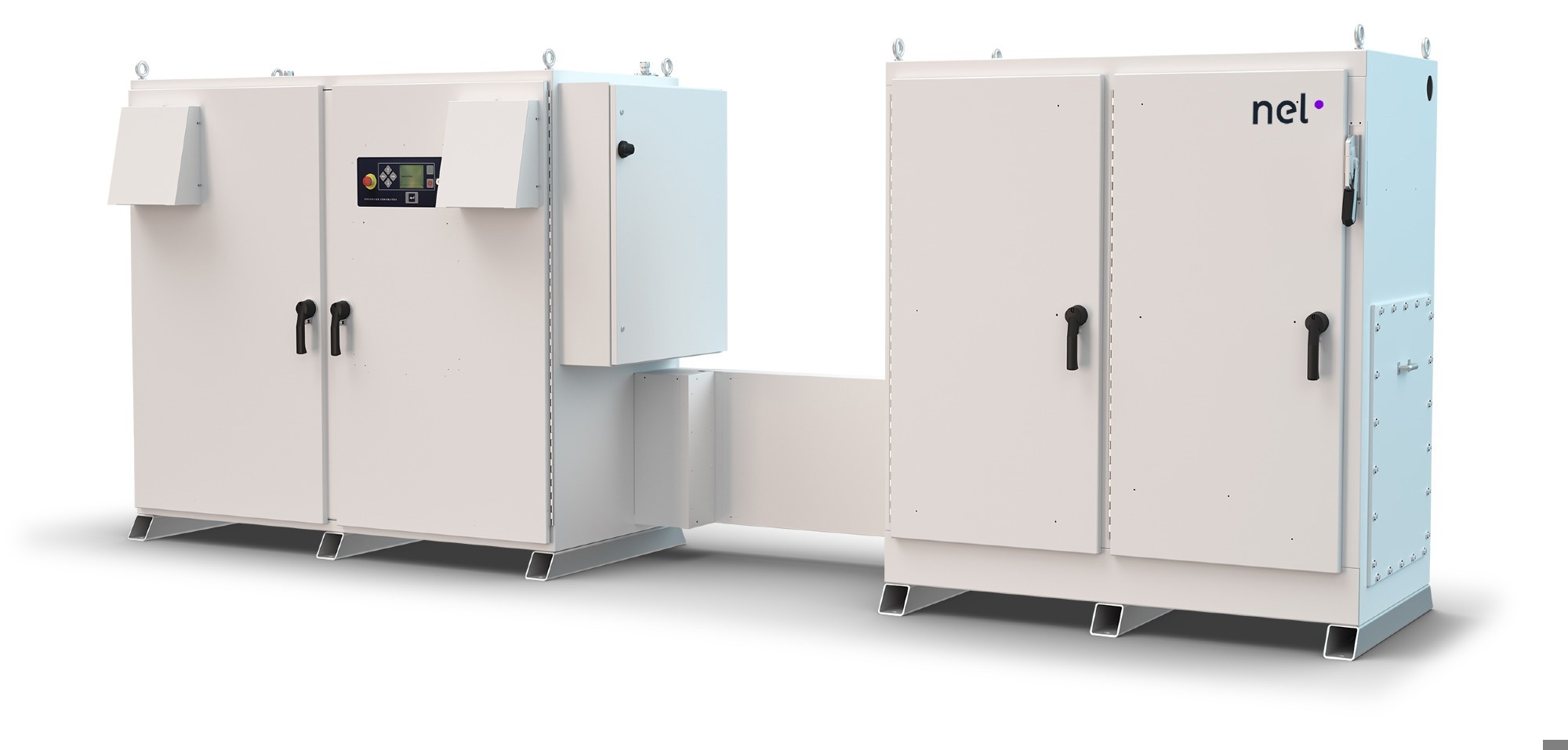

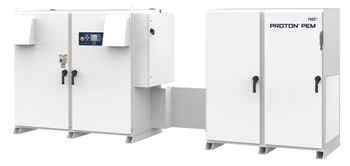

The C Series water electrolysers from Nel Hydrogen use Proton Exchange Membrane (PEM) technology to generate up to 30 Nm3/hour of hydrogen gas at a purity of 99.999+%.
The electrolyzers are suitable for a range of industrial applications. They replace the requirement for liquid hydrogen storage or hydrogen tube trailers, decreasing operational safety hazards related to delivered hydrogen.
Features
- Pure hydrogen at process pressure – up to 30 barg (435 psig) hydrogen and 99.999+% purity
- Cost-effective hydrogen supply – tracks electric costs
- Increased safety – caustic chemicals are not used
- Virtually zero stored hydrogen – removes the hazard of flooding the space
- Small footprint – only a fraction of space needed compared to trailers or cylinders
- Dependable supply of hydrogen – field-proven reliability
- Quick and easy installation – normally up and running in a day
- Automated – safe operation without manual involvement
- Low maintenance – needs as little as 4 hours of annaual maintenance
Specifications
Source: Nel Hydrogen
| Specifications |
C10 |
C20 |
C30 |
| Nominal Production Rate |
10 Nm3/h (380 SCF/h)
21.6 kg/24h |
20 Nm3/h (760 SCF/h)
43 kg/24h |
30 Nm3/h (1,140 SCF/h)
65 kg/24h |
| Turndown Range |
0 to 100% |
0 to 100% |
0 to 100% |
Power Consumption
by System at 100% Capacity1 |
6.2 kWh/Nm3
(16.3 kWh/100 SCF)
69.9 kWh/kg |
6.0 kWh/Nm3
(15.8 kWh/100 SCF)
67.6 kWh/kg |
5.8 kWh/Nm3
(15.2 kWh/100 SCF)
65.5 kWh/kg |
| Purity |
99.999+% |
99.999+% |
99.999+% |
| O2-Content in H2 |
<1 ppm v |
<1 ppm v |
<1 ppm v |
| H2O-Content in H2 |
<2 ppm v |
<2 ppm v |
<2 ppm v |
| Delivery Pressure |
30 barg (435 psig) |
30 barg (435 psig) |
30 barg (435 psig) |
Dimensions
Electrolyser
Enclosure – L x W x H
Power Supply
Enclosure – L x W x H |
2.5 m x 1.2 m x 2 m
(8.2 ft x 3.9 ft x 6.6 ft)
1.7 m x 1 m x 2 m
(5.6 ft x 3.3 ft x 6.6 ft) |
2.5 m x 1.2 m x 2 m
(8.2 ft x 3.9 ft x 6.6 ft)
1.7 m x 1 m x 2 m
(5.6 ft x 3.3 ft x 6.6 ft) |
2.5 m x 1.2 m x 2 m
(8.2 ft x 3.9 ft x 6.6 ft)
1.7 m x 1 m x 2 m
(5.6 ft x 3.3 ft x 6.6 ft) |
| Ambient Temperature |
5 to 40 °C (41 to 104º F) |
5 to 40 °C (41 to 104º F) |
5 to 40 °C (41 to 104º F) |
| Electrolyte |
Proton Exchange Membrane |
Proton Exchange Membrane |
Proton Exchange Membrane |
| Feed Water Consumption |
0.9 l/Nm3 |
0.9 l/Nm3 |
0.9 l/Nm3 |
For reference only—specifications are subject to change. Customers can contact Nel Hydrogen for solutions that best fit their needs.
1 Beginning of life and dependent on configuration and operating conditions.
