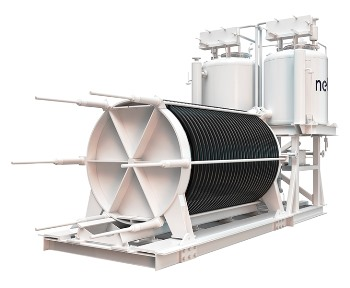

Nel Hydrogen is a world leader in large-scale electrolszers. Its A Series units provide for smooth capacity upsizing from medium to large-scale hydrogen plants based on water electrolysis technology.
Nel Hydrogen’s expertise in large-scale plants is demonstrated through historical plants surpassing 30,000 Nm³/h, as well as the latest installation of new plants with an energy capacity of over 60 MW.
The A Series, which features the most energy-efficient electrolyzers in the world, features a cell stack power consumption down to 3.8 kWh/Nm3 of hydrogen gas generated, up to 2.2 MW per stack.

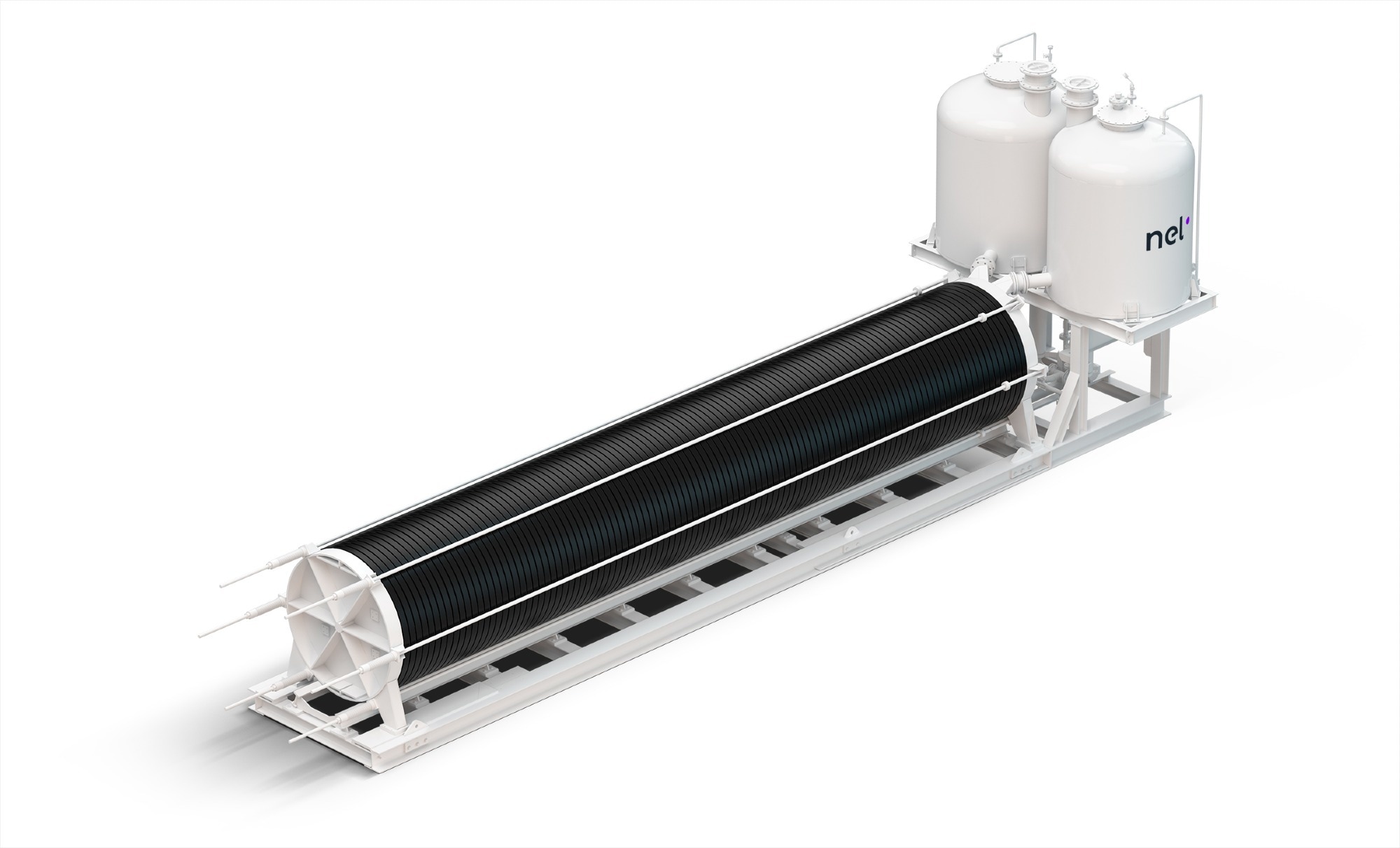

The A Series electrolyzers can generate up to 3,880 Nm3/hour of hydrogen or just above 8 ton per day. Users can containerize this powerful system, which has one of the world’s smallest footprints for high-capacity electrolyzer plants at 200 barg.
Features
- Pure hydrogen at process pressure – up to 200 barg (2,900 psig) hydrogen and 99.99 to 99.999% purity
- Cost-effective hydrogen supply – tracks electric costs
- Virtually zero stored hydrogen – removes the hazard of flooding the space
- Large capacity with minimal footprint – only a fraction of space needed compared to storing large volumes of gas or liquid hydrogen
- Dependable supply of hydrogen – field-proven reliability
- Modular skid-based design – versatile plant configurations
- Automated – safe operation without manual involvement

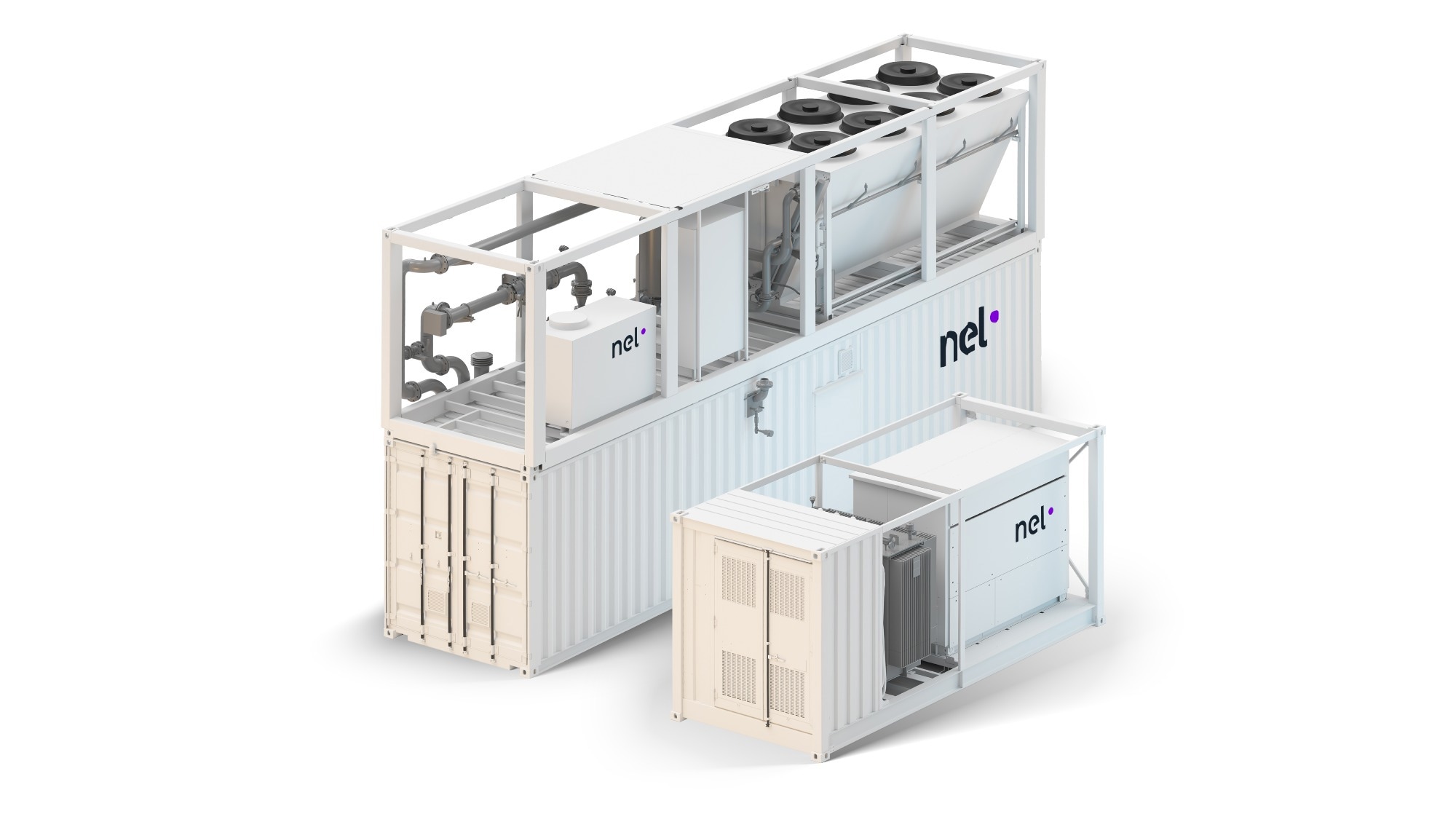

- Containerization is available – easy installation
Specifications
Source: Nel Hydrogen
| Specifications |
A150 |
A300 |
A485 |
A1000 |
A3880 |
| Net Production Rate |
50 to 150 Nm3/h |
150 to 300 Nm3/h |
300 to 485 Nm3/h |
600 to 970 Nm3/h |
2,400 to 3,880 Nm3/h |
| Production Capacity Dynamic Range |
15 to 100% of flow range |
15 to 100% of flow range |
15 to 100% of flow range |
15 to 100% of flow range |
3.75 to 100% of flow range |
| Power Consumption at Stack1 |
3.8 to 4.4 kWh/Nm3 |
3.8 to 4.4 kWh/Nm3 |
3.8 to 4.4 kWh/Nm3 |
3.8 to 4.4 kWh/Nm3 |
3.8 to 4.4 kWh/Nm3 |
|
Purity – with optional purification
|
99.99 to 99.999% |
99.99 to 99.999% |
99.99 to 99.999% |
99.99 to 99.999% |
99.99 to 99.999% |
| O2-Content in H2 |
<2 ppm v |
<2 ppm v |
<2 ppm v |
<2 ppm v |
<2 ppm v |
| H2O-Content in H2 |
<2 ppm v |
<2 ppm v |
<2 ppm v |
<2 ppm v |
<2 ppm v |
| Delivery Pressure |
1 to 200 barg |
1 to 200 barg |
1 to 200 barg |
1 to 200 barg |
1 to 200 barg |
| Footprint |
~150 m2
|
~200 m2
|
~225 m2
|
~225 m2
|
~770 m2
|
| Ambient Temperature |
5 to 35 °C |
5 to 35 °C |
5 to 35 °C |
5 to 35 °C |
5 to 35 °C |
| Electrolyte |
25% KOH aqueous solution
|
25% KOH aqueous solution
|
25% KOH aqueous solution
|
25% KOH aqueous solution
|
25% KOH aqueous solution
|
| Feed Water Consumption |
0.9 l/Nm3 |
0.9 l/Nm3 |
0.9 l/Nm3 |
0.9 l/Nm3 |
0.9 l/Nm3 |
For reference only—specifications are subject to change. Customers can contact Nel Hydrogen for solutions that best fit their needs.
1 Depends on configuration and operating conditions.
