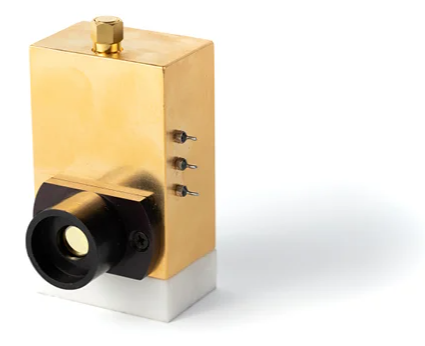

The Amplified MCT Detector seamlessly integrates with DRS Daylight’s pulsed mid-IR lasers, providing exceptional performance at 245 °K and a sub-3 nanosecond rise time, all without the need for external cooling.
The device comes in a compact package that contains a temperature controller, a low-noise amplifier, and an integrated infrared detector.
Highlights
Features and Benefits
- AC-coupled photoconductive configuration ideal for pulsed laser detection
- Broad mid-IR spectral response of 4-12 µm
- Room-temperature operation, with a two-stage TEC for cooling to 245 °K
- Wide 78° Field of View
- High sensitivity, with D > 2.5 × 109 cm.Hz½/W
- An active area of 1 mm × 1 mm
Applications
- Laser source monitoring and calibration
- Biomedical diagnostics
- Standoff detection
- Remote sensing
- Environmental monitoring
Product Specifications
Source: DRS Daylight Solutions Inc.
| . |
. |
| Detector Material |
HgCdTe |
| Spectral Response |
4—12 um |
| D* |
>2.5 E+9 cm Hz1/2/W |
| Active Detector Area |
1 mm x 1 mm |
| Fast Response |
< 3 ns rise time |
| RF Output |
SMA Connector |
| Responsivity |
>2,500 V/W |
| Power Supplies |
+15 VDC, +5 VDC |
| Power Consumption |
< 3 Watts |
| Dimensions |
7.6 x 4.4 x 4.8 cm |
