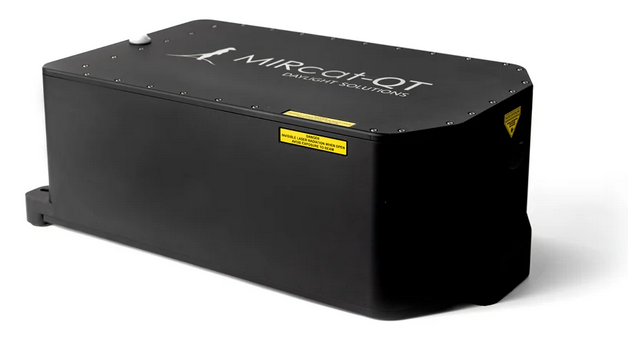

A multi-quantum cascade laser system with field-proven performance, the MIRcatTM is an improved version of the first-generation MIRcat laser. It provides higher spectral repeatability, better heat management, longer wavelength options, and high-speed tuning. Because of its flexible, modular architecture, the MIRcat is truly a one-box, fully automated system.
This allows for the factory configuration of up to four pulsed or continuous wave/pulsed modules and the freedom to add or modify them afterward. The MIRcat has a tuning range of 1000 cm-1 (>6 µm) and wavelength coverage of up to >13 µm.
It also produces unmatched, industry-leading performance in critical areas such as peak tuning speeds exceeding 30,000 cm-1/s, output power up to 1 W, and TEM00 beam quality to enable high-efficiency fiber coupling. Wavelength repeatability can approach <0.1 cm-1 and CW RIN as low as -140 dBc/Hz thanks to new, higher-precision tuning mechanisms and lower-noise drive electronics.
Highlights
Features and Benefits
- Wavelength availability: 3-13 µm
- Proprietary HFQD™ circuitry protects the chips
- GUI and SDK command sets included
- Tune up to 1000 cm-1 speeds up to 5000 cm-1/s
- CW or pulsed output (up to 3 MHz/30% duty)
- Superb TEM00 beam quality and low beam pointing allow fiber coupling
- Ultra-quiet CW: RIN as low as -140 dBc/Hz
- High output power for high SNR: to >1 W (peak) and > 0.5 W (average)
Applications
- Standoff detection
- Imaging
- Atmospheric research
- Process control
- Nanoscale imaging and spectroscopy
- Combustion diagnostics
- TIC, VOC, and GHG chemical and biological agent detection
- Biomedical diagnostics
Product Specifications
Source: DRS Daylight Solutions Inc.
| . |
. |
| Wavelength Availability |
Module options covering from < 4 µm to > 13 µm |
| Max. Tuning Speed (Step) |
250 ms step-and-settle time to arbitrary λ |
| Modes of Operation |
Pulsed or CW |
| Max. Tuning Speed (Scan) |
Peak velocity to > 30,000 cm-1/s |
| Available Configurations |
Select 1, 2, 3 or 4 laser modules |
| Wavelength Accuracy |
≤ 1 cm-1 |
| Example Configurations |
MIRcat-2400-PX-A (Pulsed, 6.5—12.4 µm)
MIRcat-2400-PX-B (Pulsed, 5.5—11 µm)
MIRcat-2400-PCX-B (CW/Pulsed, 6—11 µm) |
| Average Power Stability |
< 3% (1 hr) |
| Tuning Modes |
Set λ, Step & Measure, Continuous Scans |
| Spatial Mode |
TEM00 (nominal) |
| Beam Divergence |
< 4 mrad at 4 µm (full angle, 1/e2 intensity width) |
| Beam Pointing Stability |
< 2 mrad (beam centroid change) |
| Spot Size |
< 2.5 mm (1/e2 intensity radius) |
| Polarization |
Linear, vertical, > 100:1 |
