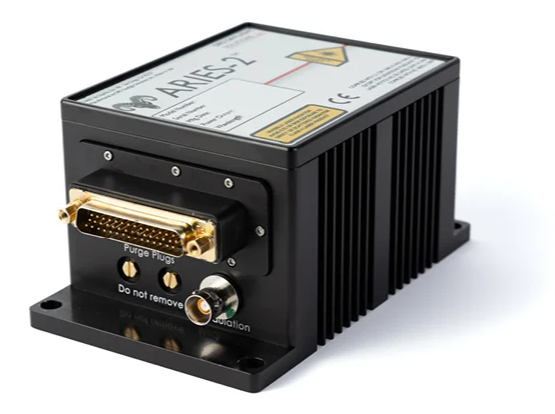

High Power Mid-IR Laser with Aries-2™

The Aries-2 series encompasses a range of fixed-wavelength, narrowband mid-IR lasers that can deliver an average output power of up to 1 W. This series is characterized by its exceptionally sturdy and consistent resonator structure, which offers users precise control over linewidth and consistent wavelength performance in varying environmental conditions. Aries-2 lasers are customizable with a selection of quantum cascade laser chips, allowing for specific configurations tailored to different application needs.

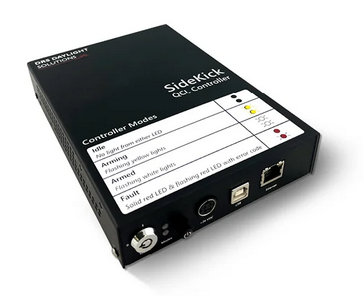

Each Aries-2 system comes equipped with a SideKick laser controller, enabling flexible and precise management of the laser's output power, temperature, and pulse parameters.


Features and Benefits

  • Proprietary HFQD circuitry protects the chips
  • Superb wavelength stability: ≤0.5 cm-1/hour within operating temperature range
  • High power stability: < 2% rms (1 hour)
  • Optical power up to 2 W
  • Wavelength availability: 3-13 µm
  • SideKick controller, GUI, and SDK included with all systems
  • Superior TEM00 beam quality and low beam pointing allow fiber coupling
  • CW or pulsed output
  • Linewidths of <1 cm-1 (pulsed, FWHM) or < 100 MHz (CW, tuned to SLM) Output power to >1 W (peak) or >0.5 W (average)
  • Current (amplitude) modulation up to 1 MHz


  • Materials characterization
  • Imaging
  • OPA/OPO seeding
  • Illumination
  • TIC, VOC, GHG, and leak detection
  • Optical fiber testing
  • LIDAR and DIAL systems
  • Standoff detection
  • Environmental monitoring
  • IRCM research
  • Detector Calibration

Product Specifications

Source: DRS Daylight Solutions Inc.

. .
Center Wavelength Availability  4-11 μm
Spatial Mode TEM00 (nominal)
Beam Divergence  < 4 mrad (full angle, 1/e2 intensity width)
Beam Diameter < 5 mm(1/e2 width)
Ellipticity < 1.5
Pulse Repetition Frequency  CW to 1 MHz
Rise/Fall Time (10-90%) < 100 ns
QCL Compliance Voltage  < 17 VDC
QCL Operating Current  < 3 A
Operating Range (Case Temp) 15 – 55 °C
Dimensions (L×W×H)  14 × 7 × 8.6 cm
