Jun 5 2010
WeGo Solar offers the Sharp NU-235F1 solar module. This solar module utilizes an advanced surface texturing method for increased light absorption and improved power production. This solar module can be conveniently used in grid connected roof systems and ground mounted arrays. The NU-235F1 module incorporates a tempered glass, EVA lamination and a back cover to withstand all types of weather conditions.

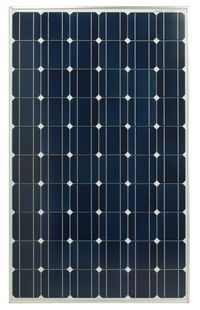

Sharp NU-235F1 Solar Module
For increased cell performance and higher power output efficiency this solar module incorporates156 mm monocrystalline solar cell in 60 cells in series configuration. The balanced size and weight construction of this module allows improved power performance. The measurement of the Sharp NU-235F1 solar module from WeGo Solar is 994 mm x 1640 mm x 46mm and weighs 20 kg. The cable length of this module is 1100 mm and uses a 12 AWG with MC4 Locking Connector as output cable interconnect. This module offers a maximum power of 235 W with +10% / -5% tolerance.
The NU-235F1 solar module supplies an open circuit voltage of 37.0 V, a maximum power voltage of 30.0 V, a short circuit current of 8.60 A, a maximum power current of 7.84 A, a module efficiency of 14.4% and a maximum system voltage of 600 V. The operating cell temperature of this module is in the range of -40 to 90°C, and bears a maximum 2400 Pa load. This module is UL listed and has class C fire rating.
Source: http://wegosolar.com
