Amid ongoing environmental concerns, solar energy is considered a cleaner alternative to conventional energy sources. Solar panels convert sunlight into electricity, but conventional fixed-tilt tracking systems often operate below optimal efficiency as the sun’s position changes throughout the day. Solar tracking systems address this limitation by continuously adjusting the panels’ orientation to remain aligned with the sun. This alignment typically increases energy output by 10–40% compared to fixed installations.1 This article examines solar tracking technology, including its working principles, system components, and recent developments in the field.

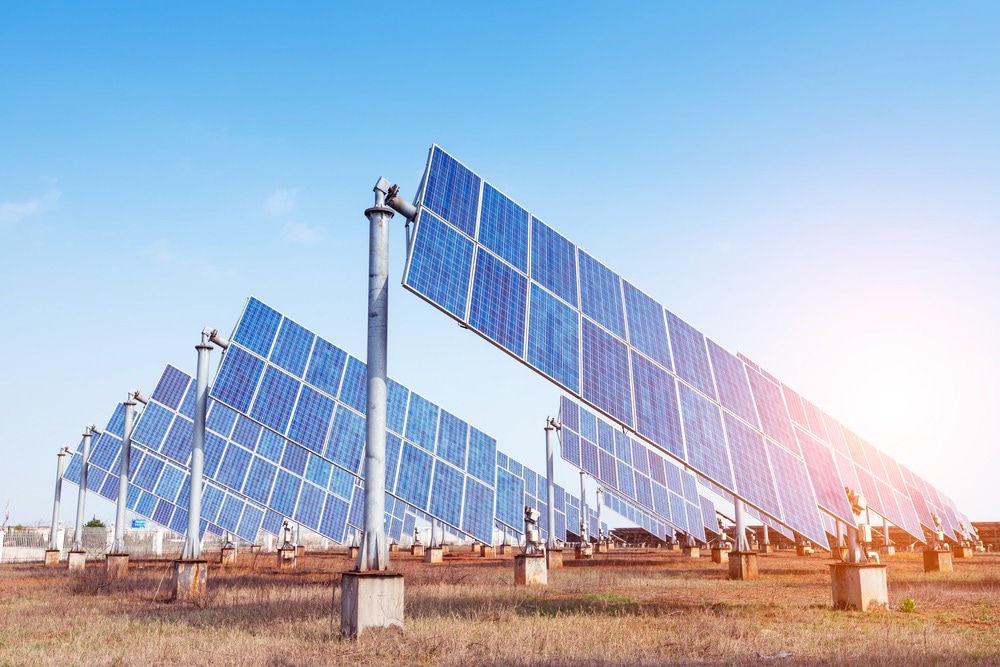

Image Credit: gui jun peng/Shutterstock.com
Fundamentals of Solar Photovoltaic Technology
Solar photovoltaic (PV) technology converts sunlight into electricity using semiconducting materials like silicon. When photons strike these materials, they transfer energy to electrons, generating an electric current. Energy output depends on the angle at which sunlight strikes the panel. Perpendicular rays deliver optimal results.2
Solar energy offers significant advantages as a renewable resource. It produces no emissions during operation and utilizes a widely available energy source. Solar systems require minimal maintenance once installed and can be scaled for various residential and utility-scale applications.
However, the efficiency of solar PV systems depends on maximizing direct sunlight exposure, which is the challenge that tracking systems address. A 2023 study shows that single-axis trackers can increase energy output by 10–20%, while dual-axis systems can boost output by 30–40%. The choice between tracker types depends on factors like geographic location, budget, and project scale—topics explored in later sections.1
How Solar Tracking Systems Work: Components and Design
Solar tracking technology adjusts solar panels toward the sun’s position to increase the amount of direct sunlight striking the panels throughout the day. Heliotropism, or the sun-tracking behavior of plants like sunflowers, is another example of this idea in nature. The solar tracking system mimics this natural behavior by adjusting panel orientation to the sun's movement to increase photovoltaic efficiency.
A solar tracking system combines software, electronics, and mechanical components to achieve precise panel alignment. A mounting structure typically made of steel or aluminum supports the rotation of PV modules by holding their weight. Drive systems, including hydraulic mechanisms, linear actuators, or electric motors, enable the movement.
The system’s "brain" is its controller, often a programmable logic controller (PLC) or microcontroller like Arduino. It processes data from various sensors, such as light-dependent resistors (LDRs), UV sensors, or GPS modules, to determine the sun's position. More advanced systems use astronomical algorithms or fuzzy logic control (FLC) to predict the sun's path, reducing reliance on sensors alone. For instance, a 2023 study found that FLC-based trackers could increase power output by up to 96% in variable cloud conditions.3
The controller, which is often a microcontroller like Arduino or a programmable logic controller (PLC), serves as the system's "brain." It analyzes data from a variety of sensors, including GPS modules, UV sensors, and light-dependent resistors (LDRs) to determine the position of the sun. Advanced systems reduce reliance on sensors by predicting the sun's path using fuzzy logic control (FLC) or astronomical algorithms. For example, a 2023 study discovered that FLC-based trackers could increase power output by up to 96% in variable cloud conditions.3
Modern solar trackers frequently use backtracking algorithms to reduce self-shading in multi-row installations and prevent energy loss. These algorithms move the panels so that they do not cast shadows on nearby rows, increasing overall efficiency. Furthermore, weather resilience features are essential for guaranteeing the longevity of the system; many trackers can store the panels in a protective horizontal position to guard against damage during strong winds or hail.
Types of Solar Tracking Systems
Single-axis trackers
Solar trackers are categorized by their degrees of freedom. Single-axis trackers follow the sun's path from east to west by rotating panels around a single axis, typically aligned north-south. They are commonly used in large-scale solar projects and can generate about 10–20% more energy than fixed-tilt systems. Their relatively simple design and maintenance requirements make them a practical choice for installations where balancing cost and performance is important.1
Dual-axis trackers
Dual-axis trackers adjust solar panels along two rotational axes that allow them to follow both the sun’s daily east-to-west movement and its seasonal north-south shifts. This design helps maintain better alignment with the sun throughout the year, which can be useful in regions with significant seasonal variation or in projects where maximizing energy output is a priority. Research shows that dual-axis systems can achieve 30–40% greater annual energy production, with some prototypes reaching 58.7% gains during summer months.4 However, their high installation cost and mechanical complexity may make them more suitable for specific applications rather than widespread use.
Comparison of Single-Axis and Dual-Axis Tracking Systems
|
Feature
|
Single-Axis Systems
|
Dual-Axis Systems
|
|
Energy Efficiency
|
10-20% higher output vs. fixed systems
|
30-40% higher output vs. fixed systems
|
|
Mechanical Complexity
|
Simpler design with fewer components
|
More complex with additional actuators
|
|
Tracking Capability
|
Adjusts panels in one plane
|
Adjusts in both horizontal and vertical planes
|
|
Applications
|
Suitable for residential installations
|
Ideal for utility-scale and high-DNI(Direct Normal Irradiance) regions
|
|
Cost Considerations
|
Lower initial and maintenance costs
|
Higher investment but greater energy returns
|
Practical Considerations
Tracking systems require approximately 25-40% more land area than fixed installations because the panels need enough space to move without casting shadows on each other. As these systems move with the sun, they often need strong foundations to stay stable, especially on soft ground or in earthquake-prone areas. Due to added structural support, high winds can further increase installation costs by 15–30%.
In desert environments, dust mitigation systems are crucial, whereas snow shedding features are needed in cold climates to maintain efficiency.5, 6, 7, 8
Recent Advancements in Solar Tracking Systems
Recent advancements focus on improving accuracy, durability, and affordability. Technologies such as the Internet of Things (IoT) and artificial intelligence (AI) enable real-time performance monitoring and more precise panel positioning.
Some smart tracking systems adjust panel movement based on weather forecasts, reducing unnecessary operation during cloudy conditions to minimize mechanical wear and energy loss. These systems also support remote monitoring and control, providing users with performance data and the ability to make manual adjustments when needed.9
Download your PDF copy now!
Advancements in material science have contributed to lighter and more efficient tracking systems. For instance, using composite frames helps reduce the overall structural load. Some trackers are now self-powered, using small built-in photovoltaic cells to run their motors, which reduces the need for external power sources. On the software side, hybrid tracking systems that combine GPS data with light-dependent resistors (LDRs) have shown promising results, with studies reporting up to 33.2% higher energy yields compared to fixed-tilt installations. 10
Studies comparing the performance and cost of solar tracking systems with fixed-tilt setups show clear benefits. Single-axis trackers increased energy production by approximately 24.4%, while dual-axis systems achieved around 32.2% more output. In terms of cost recovery, single-axis systems reached payback about 0.39 years earlier than fixed systems, and dual-axis systems shortened payback by approximately 18 months. These results suggest that, despite higher upfront costs, tracking systems can offer improved efficiency and better economic returns over time.11
Future Prospects of Solar Tracking System
As materials, control systems, and integration with new technologies continue to evolve, solar tracking systems are expected to become more affordable and efficient. The use of smart technologies, such as IoT, AI, and machine learning, will likely enhance system performance while reducing operational costs. Overall, solar tracking systems offer a significant advancement in photovoltaic technology by overcoming the limitations of fixed-tilt installations with their ability to follow the sun. Single-axis trackers provide a cost-effective option for many applications, while dual-axis systems deliver better performance when site conditions and budget allow.
With ongoing improvements in technology, tracking systems are expected to become increasingly reliable and cost-effective, playing a larger role in the adoption of renewable energy.
References and Further Reading
- Demirdelen, T., Alici, H., Esenboga, B., & Güldürek, M. (2023). Performance and Economic Analysis of Designed Different Solar Tracking Systems for Mediterranean Climate. Energies, 16(10), 4197. https://doi.org/10.3390/en16104197
- Performance Evaluation of a Solar Tracking PV System with Photo Sensors. Journal of the Korean Institute of Illuminating and Electrical Installation Engineers. 27(5), 67–73. http://dx.doi.org/10.5207/JIEIE.2013.27.5.067
- Yang, L. Z., Md Yunus, M. A., Sahlan, S., & Jamali, A. (2023). Automated Dual-axis Solar Tracking System Using Fuzzy Logic Control. 150–154. https://doi.org/10.1109/icsima59853.2023.10373468
- Alexandru, C. (2024). Simulation and Optimization of a Dual-Axis Solar Tracking Mechanism. Mathematics. https://doi.org/10.3390/math12071034
- Stephens, K., & Angel, J. R. P. (2012). Comparison of collection and land use efficiency for various solar concentrating field geometries. 8468, 846804. https://doi.org/10.1117/12.930240
- Faivre, X. (2022). Analysis and Design of Foundation System for the Horizontal Solar Axis Tracker (pp. 1–12). https://doi.org/10.1007/978-981-19-6359-9_1
- Kim, Y.-W., & Lee, S. Y. (2013). Stability Analysis on Solar Tracker Due to Wind. 22(2), 216–222. https://doi.org/10.7735/KSMTE.2013.22.2.216
- Dahli, K., & Cheggaga, N. (2024). Novel approach to sandstorm-resilient solar tracking system for optimal energy generation. Energy Sources Part A-Recovery Utilization and Environmental Effects. https://doi.org/10.1080/15567036.2024.2327606
- Vimal, V. (2024). Enhanced Solar Tracking System Utilizing IoT for Optimal Energy. 448–451. https://doi.org/10.1109/icscss60660.2024.10625348
- Hammas, M., Fituri, H., Shour, A., Khan, A. A., Khan, U. A., & Ahmed, S. (2025). A Hybrid Dual-Axis Solar Tracking System: Combining Light-Sensing and Time-Based GPS for Optimal Energy Efficiency. Energies, 18(1), 217. https://doi.org/10.3390/en18010217
- Demirdelen, T., Alici, H., Esenboga, B., & Güldürek, M. (2023). Performance and Economic Analysis of Designed Different Solar Tracking Systems for Mediterranean Climate. Energies, 16(10), 4197. https://doi.org/10.3390/en16104197
