Jun 9 2010
Advanced Green Technologies offers the AmeriBRIGHT 200W Crystalline Silicon solar module. This module contains 156 x 156 mm² sized multicrystalline silicone solar cells connected in 54 series. This module can be utilized for both grid connected and off grid type of applications.
The solar cells used in the module are protected by an aluminum anodized frame and a laminated tempered glass. The plug and play type of junction box incorporated in the module allows easy installation. For increased cell protection this module incorporates three bypass diodes.

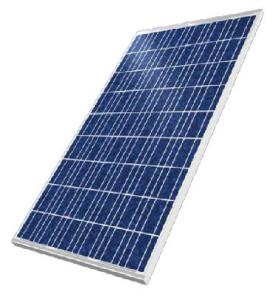

AmeriBRIGHT 200W Crystalline Silicon Solar Module
Under standard test conditions this module offers a maximum power of 200 W, a maximum voltage of 26.6 V, a current of 7.51 A, an open circuit voltage of 32.72 V, and a short circuit current of 7.9 A. This solar module can efficiently perform in temperatures ranging from -40 to +90ºC. The AmeriBRIGHT 200W Crystalline Silicon solar module has a length x width x depth measurement of 1482 mm x 992 mm x 50 mm and weighs 17.9 kg.
The design of the solar module allows it to bear a static load of 2400 Pa and withstand the tested hailstorm impact of 25 mm steel ball at 23 m/s. This solar module offered by Advanced Green Technologies meets the certification requirements of UL 1703, IEC 61215, TUV and cUL.
Source: http://www.agt.com
