Jun 22 2010
CentroSolar offers the TFM 288FB roofing membrane with an integrated thin film solar module manufactured by UNI-SOLAR. This specially designed module can be used as a roofing system and contains a diffuse irradiation feature to harvest power efficiently over low roof angles and unfavorable positioning. This module can be competently installed over flat roofs and roofs with more than 3º inclination.

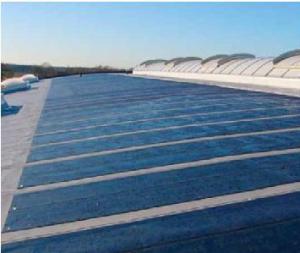

TFM 288FB Roofing Membrane
This module incorporates amorphous silicon triple junction cells laminated over a roofing membrane. A highly transparent ETFE fluorine polymer is utilized as front cover to cover the cells. This module incorporates an IP65 protection junction box with integrated bypass diodes for increased power output. The connecting cable measuring 2 x 0.5 m connects to the module by utilizing a pin-and-socket connector system. The length x width dimensions of the TFM 288FB module offered by CentroSolar is 5900 mm x 1050 mm and weighs 35 kg. The TFM 288FB solar module offers a nominal power of 144 W, a voltage of 33 V, a current of 4.36 A, an open circuit voltage of 46.2 V, and a short circuit current of 5.3 A.
Some of the other advantages of this solar module includes usage of premium quality materials for increased product service life, quick plug–and-play type of installation and easy connectivity utilizing pin and socket connectors.
Source: http://www.centrosolar.de
