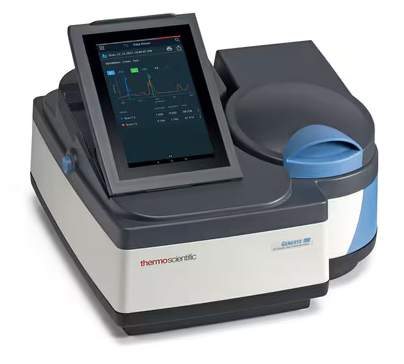

The Thermo Scientific™ GENESYS™ 180 UV-Visible Spectrophotometer enables high-throughput quantitative UV-Vis readings using a double-beam reference cell. The GENESYS™ 180 UV-Visible Spectrophotometer's high-resolution color touchscreen, optional WiFi networking, and sturdy build for use in demanding, repetitive settings have been included to maximize usability and performance.
The precision, reliability, and reproducibility of GENESYS spectrophotometers are recognized worldwide. As a result, these spectrophotometers meet modern demands for advanced technology in a compact, reliable form.
For labs that require a reference cell location for applications such as kinetics, the GENESYS™ 180 UV-Vis Spectrophotometer provides double-beam operation. For high-throughput applications, an 8-cell carousel is the standard. The spectrophotometer's resistance to ambient light enables lid-open operation for greater convenience.
Fiber optic probes, automatic cell changers and holders, and a sipper are just a few of the accessories that come with the GENESYS™ 180 UV-Vis Spectrophotometer. Measurements outside the sample chamber are made easier with these devices. They are designed to facilitate high-throughput measurements, ensure temperature control, and simplify sampling.
Features
- Peltier-thermostatted single cell holder (20 - 60 °C) (optional)
- Standard 8-position cell changer including switchable turret
- Long-path cells with a four-position cell changer (optional)
- Cells with a path length of up to 100 mm are supported
- Networking capability (with optional Wi-Fi adaptor)
- 7-inch high-resolution touchscreen user interface
- Onboard methods, reporting, and data export
- Room light resistance for “open-lid” operation
- Double-beam/reference cell
- Sipper accessory (optional)
Download the Brochure for More Information
Specifications
Source: Thermo Fisher Scientific - UV-Vis Spectroscopy
| . |
. |
| Baseline Flatness |
±0.002 A |
| Compartments |
8-position cell changer (standard)
Also accommodates (optional):
4-position cell changer (long path cells)
Peltier thermostatted cell holder (20-60 °C)
Sipper accessory
Fiber optic probe coupler |
| Connections |
Single USB-A
Duplex USB-A
Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available
Print via USB, Ethernet, or Wi-Fi
USB adaptor available |
| Dimensions (L x W x H) |
35.5 x 38.5 x 19.5 cm |
| Drift |
(At 500 nm after 1 hour warmup) <0.0005 A/hr. |
| Electrical Requirements |
External AC to DC converter.
Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz |
| Keypad |
Touchscreen |
| Lamp Life |
> 5 years typical, 3 years guaranteed |
| Noise |
(RMS at 500 nm, 60 consecutive measurements)
≤0.00020 A at 0 A at 260 and 500 nm
≤0.00030 A at 1 A at 260 and 500 nm
≤0.00040 A at 2 A at 260 and 500 nm |
| Optical Design |
Double Beam |
| Photometric Accuracy |
±0.002 A at 0.5 A, ±0.004 A at 1.0 A, ±0.008 A at 2.0 A |
| Photometric Display |
-3 A to +5 A |
| Photometric Range |
–2 A to +3.5 A |
| Photometric Repeatability |
±0.001 A at 1 A measured at 1.0 A at 546 nm |
| Printer Included |
Snap-on printer available |
| Scan Speed |
Slow, medium, and fast - up to 1600 nm/min. |
| Stray Light |
< 1.0 %T 198 nm (KCl), <0.05 %T at 220 nm (NaI), <0.03 %T at 340 nm (NaNO2) |
| Warranty |
2 yrs std + 1 yr ext upon reg |
| Wavelength Accuracy |
±0.5 nm |
| Wavelength Data Interval |
0.1 nm, 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm |
| Wavelength Repeatability |
< ±0.2 nm |
| Weight (Metric) |
7.5 kg |
| Detector Type |
Dual Silicon Photodiodes |
| Display |
7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels |
| Spectral Bandwidth |
2 nm |
| Type |
UV-Vis Spectrophotometer |
| Wavelength Range |
190 to 1100 nm |
| Unit Size |
Each |
