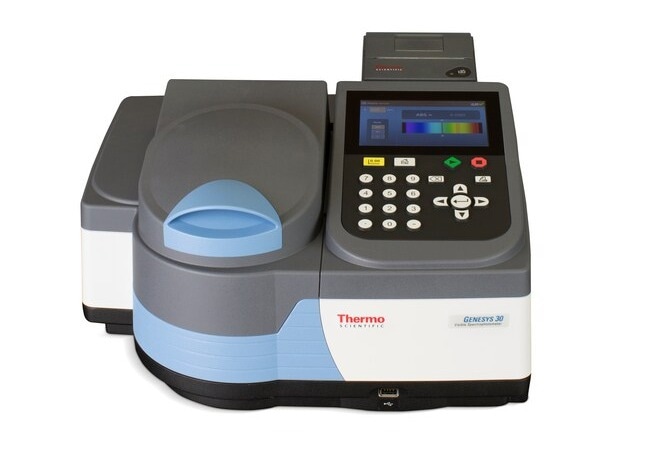

The Thermo Scientific™ GENESYS™ 30 Visible Spectrophotometer, a user-friendly, dependable solution suitable for educational or laboratory settings, performs both fundamental and complex analyses.
Achieve high precision and functionality with a simple yet sophisticated visible spectrophotometer. Its user-friendly design enables students and educators to focus on scientific data and concepts rather than on mastering the instrument's operation. In laboratory settings, technicians at all skill levels can effortlessly obtain reliable results from routine QA/QC tasks to verify quality or guide subsequent actions. Results can be swiftly reported in either digital or printed formats.
The GENESYS 30 visible spectrophotometer features an intuitive design, a high-definition color display, rapid and precise measurements, and convenient data reporting. It serves as the perfect tool for any user, whether a beginner student or a seasoned laboratory professional.
Product Features
- Completely redesigned industrial layout for enhanced usability
- High-resolution 5-inch color display featuring a rubberized push-button keypad for effortless navigation
- Single cell measurement with a removable and washable liner for the sample compartment
- Constantly illuminated light source for swift analysis and straightforward maintenance
- Standard cell holder compatible with 10 mm cuvettes, along with optional holders for various cell types, including test tubes
- Updated onboard software user interface; Thermo Scientific™ VISIONlite PC software is available as an option
- Data presented in the preferred format
- USB data export in a text format that is simple to read and process
- Outstanding snap-on thermal printer available
- Three-year warranty accompanied by expert technical support
Meets Curriculum Topics for
- Colorimetry/colorimetric analysis
- Beer’s Law
- Single wavelength
- Scanning
- Quantitative analysis
Lab Associate Benefits
- Multiple local language choices
- Higher data confidence with 6-point quant plus concentration mode
Download the Brochure for More Information
Specifications
Source: Thermo Fisher Scientific - UV-Vis Spectroscopy
| . |
. |
| Baseline Flatness |
<0.003 A, 325 to 1000 nm, smoothed |
| Compartments |
Accessible from top, front, or side
Able to accommodate cells up to 100 mm pathlength
Available accessory for test-tubes up to 25 mm diameter and 150 mm height
Removable, washable sample compartment liner with magnetic placement and hold-down |
| Connections |
USB-A, USB-B |
| Dimensions (L x W x H) |
35.5 x 38.5 x 19.5 cm |
| Drift |
<0.002 A/hr. (At 500 nm after 2 hr. warmup.) Typical <0.004 A/hr. after 1 hr. warmup |
| Electrical Requirements |
External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/250 V, 50/60 Hz |
| Includes |
GENESYS 30 Spectrophotometer |
| Keypad |
Tactile rubber 23 keys with numeric keypad |
| Lamp Life |
1000 hrs. |
| Noise |
≤0.001 A at 0 A
≤0.001 A at 1 A
≤0.002 A at 2 A
RMS at 500nm. 60 consecutive measurements |
| Optical Design |
Single Beam |
| Photometric Accuracy |
±0.002 A (0 to 0.3 A), 0.5 % of ABS reading (0.301 A to 2.5 A) |
| Photometric Display |
-3 A to +3 A, 0 to 200 000 %T, 0 to 9 999 999 C |
| Photometric Range |
-3 A to +3 A |
| Photometric Repeatability |
± 0.002 A
Measured at 1.0 A at 546 nm |
| Printer Included |
Thermal printer accessory with 80 mm wide paper |
| Scan Speed |
Automatic – up to 1200 nm/min. |
| Stray Light |
<0.1 %T at 340 nm and 400 nm
Measured using glass cutoff filters or NaNO2 at 340 nm |
| Warranty |
2 yrs std + 1 yr ext upon reg |
| Wavelength Accuracy |
±2 nm |
| Wavelength Data Interval |
1 nm |
| Wavelength Repeatability |
< ±1 nm |
| Weight (Metric) |
7.5 kg |
| Detector Type |
Silicon Photodiode |
| Display |
5 in. 32-bit Color Display, 800 x 480 pixels |
| Languages |
English, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean, Thai, Arabic |
| Spectral Bandwidth |
5 nm |
| Wavelength Range |
325 to 1100 nm |
| Unit Size |
Each |
