Jun 25 2010
Energy Pro offers the SCM 210 solar Polysilicon modules. This module incorporates 60 numbers of highly competent square type soar cells each measuring 156 mm x 156 mm.
The special glass treatment performed for the modules prepares the modules to produce increased amount of power even during low light conditions. The bypass diodes kept in the securely built and easy to access junction box reduces the effects of shading. The SCM 210 solar Polysilicon module offered by Energy Pro incorporates Tedlar PVF film for back sheet for durable weather resistant performance and an anodized aluminum frame to hold the module securely for years of usage.

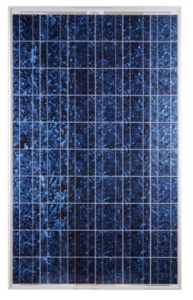

SCM 210 Solar Polysilicon Module
The SCM 210 solar module incorporates multicontact Solarline 2 MC4 type of locking connectors for inter module connectivity and quicker system installation. The MC Flex-Sol twofold insulated output wiring used in the module increases the safety of array wiring and builds this module ready for use with transformer less inverter technology. The SCM 210 solar Polysilicon module offers a peak power output of 210 W, an output tolerance of ±3%, a maximum power voltage of 28.2 V, a maximum current of 7.5 A, an open circuit voltage of 36.1 V, and a short circuit current of 8.1 A.
The cell efficiency of this module is 14.0%, and its module efficiency is 12.4%. The sturdy design of the module allows it withstand heavy snow and adverse wind conditions.
Source: http://www.energyproaz.com
