Jun 3 2010
Satcon offers the Satcon S-Type 210 kW PV inverters. The inverters are suitable for use with large-scale solar installations. The enclosure incorporated in the model withstands the demanding outdoor atmosphere, and has advanced monitoring control and the patented Edge MPPT solution.

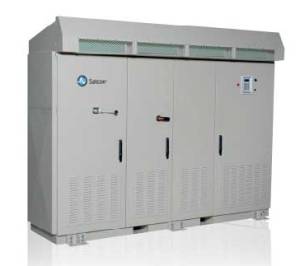

Satcon S-Type 210 kW PV Inverters
The components used in the inverters are kept protected in a space saving cabinet that can be installed, maintained and operated with ease. The cabinet box is made of 14 gauge powder coated G 90 steel, where the base and door are made of 16 gauge powder coated steel.
The height x width x depth measurement of the NEMA 3R rating cabinet used to house 210 kW PV inverter is 92.6 in. x 117.7 in. x 43.3 in. and weights 4500 lbs. The components installed in the cabinet can be conveniently reached. The large-sized in-floor cable glands extend easy access to DC and AC cables. The input parameters of PVS-210-S 480 VAC module include a maximum array input voltage of 600 VDC, a MPPT full power input voltage of 265-600 VDC and a maximum input current of 830 A DC. The output voltage include ranges from 422 to 528 VAC, a nominal output voltage of 480 VAC, an output frequency ranging from 59.5 to 60.5 Hz, and a nominal output frequency of 60 Hz.
The Satcon S-Type 210 kW PV inverters offered by Satcon use forced air type of cooling and operates in an ambient temperature range of -20 to +50º C with a noise level of <65 dB(A). The cabinet of the inverters has UBC Zone 4 seismic rating and meets the required testing and certification norms.
Source: http://www.satcon.com
