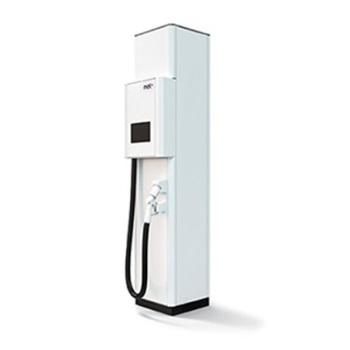

H2Station™ Hydrogen Fuel Dispensers

Nel’s Hydrogen Fuel Dispensers are one-third the size of gasoline and diesel dispensers and the most compact on the market. They are easy to install with no requirement for underground temperature conditioning equipment, and can be placed next to gasoline and diesel dispensers, sharing fueling lanes.

Features

  • Underground pit box for pipe and connections
  • No temperature conditioning required at dispenser
  • Flexible placement – up to 50 meters from the Fueling Station Module
  • Intuitive designed user interface and nozzle handling with IFSF connection to external POS
  • Start and stop buttons with indicator lamp
  • LED backlight display showing price per kg, quantity fueled and total price
  • Galvanized steel construction for resistance to corrosion

Specifcations

Source: Nel Hydrogen

Dispenser Types 35
MPa
EU
70
MPa
EU
70
MPa
KR
70
MPa
US
35
MPa
US
35
MPa
EU
Vehicle Tank Sizes: 2 – 40
kg
2- 10
kg
2 – 40
kg
2 – 10
kg
10 – 40
kg
10 – 50
kg
Fueling Protocol SAE
J2601-1/2
SAE
J2601-1
SAE
J2601-1/2
SAE
J2601-1
SAE
J2601-2
SAE
J2601-2
Nozzle Design: WEH TK17 35 MPa – with infrared communication WEH TK17 70 MPa –
with infrared communication
WEH TK17 35 MPa – high flow with infrared communication WEH TK16 35 MPa – high flow with infrared communication
Point of Sale Interface: International Forecourt
Standards Forum
– IFSF 2.32
IFSF 2.32 and Gilbarco
Two-Wire Protocol
International Forecourt Standards Forum – IFSF 2.32
Dimensions L: 635 mm W: 520 mm H: 2500 mm / L: 2' 1'' | W: 1' 9'' | H: 8' 3''
Operating Temperature -20 °C to +40 °C / -4 °F to +104 °F
Hose Length 2,5 Meter
Supply Methods Start and stop buttons with indication lamp plus colored LED backlight panel showing prices, quantity and introduction video Start and stop buttons with indication lamp plus remote colored LED backlight panel showing prices, quantity and introduction video Start and stop buttons with indication lamp plus colored LED backlight panel showing prices, quantity and introduction video
Safety Equipment
  • Mechanical / safety instrumented system and safety software
  • Leak detection software and hydrogen gas detector
  • Break-away coupling and sensor
  • Tilt sensor and shear valve
  • Mechanical / safety instrumented system and safety software
  • Leak detection software and hydrogen gas detector
  • Break-away coupling and sensor
  • Tilt sensor and shear valve
  • Separate mechanical gauge and manual shut-off valve
  • Mechanical / safety instrumented system and safety software
  • Leak detection software and hydrogen gas detector
  • Break-away coupling and sensor
  • Tilt sensor and shear valve
  • Approval and Certification
  CE KGS UL CE
