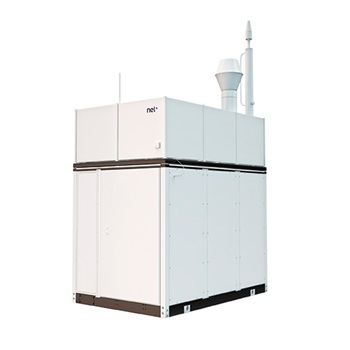

Nel’s Fueling Station Modules represent the next generation in hydrogen fueling for fuel cell cars, buses, trucks and trains. They offer fast fueling with the world’s most compact footprint. Their design is based on years of R&D and operational experience, and is renowned for providing high fueling reliability. They feature the world’s first dedicated hydrogen compressor, the most efficient and contamination free hydrogen compressor on the market today.
Features
- Daily capacity of up to 2,000 kg/day
- Maximum capacity of 240 kg/h
- Compact footprint of only 7.3 m2
- Multiple dispenser connection options for fueling of cars, heavy duty vehicles and forklifts
- Proprietary and high capacity cooling technology for -40 °C 70 MPa fast fueling of cars
- Advanced control system for safe, fast and complete fueling in accordance with SAE J2601-1 v2016
- Reliable and non-contaminating hydrogen compression with high capacity and efficiency
- Connects to separate Supply Storage module and Fueling Storage module
- Galvanized steel construction for resistance to corrosion
Specifcations
Source: Nel Hydrogen
| Station Types |
SM 2-Stage EU |
SM 2-Stage KR |
LP Duplex |
HP Duplex |
| Maximum Capacity |
66 kg/h@70 Mpa |
66 kg/h@70 Mpa |
240 kg/h@70 Mpa |
120 kg/h@70 Mpa |
| Dispenser Connections |
2 (one of each below) |
1 |
3 |
3 |
| Dispenser Options |
70 MPa 35 MPa |
70 MPa |
35 MPa |
70 MPa 35 MPa |
| Inlet Pressure: |
3 – 45 MPa, up to 22 MPa direct use on compressor |
3 – 45 MPa |
10 – 50 MPa |
| Operating Pressure: |
Maximum: 100 MPa |
Maximum: 56 MPa |
Maximum: 100 MPa |
| Operating Temperature |
-20 °C to +40 °C (optimal performance up to +35 °C) |
| Scope and Interface |
Turnkey module ready for connection to external Storage modules |
| Supply Methods |
On-site Production Delivery SWAP trailer |
On-site Production SWAP trailer |
On-site Production SWAP trailer |
On-site Production Delivery |
| Dimensions |
L: 3.300 mm W: 2.200 mm H: 3.500 mm |
| Approval and Certification |
CE |
KGS |
CE |
UL |
