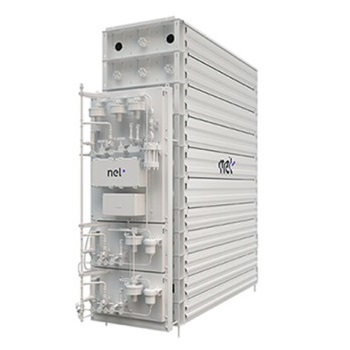

H2Station™ Storage Modules

Nel’s Storage Modules feature flexible configurations, allowing you to start small and add storage capacity up to 106 kg of hydrogen at 50 MPa and 100 MPa. With a footprint of only 3.8 m3, each unit consists of storage vessels, arranged in three independent banks per level and up to eleven levels high.

Features

  • Flexible configurations to match and grow with storage needs
  • Flexible placement – up to 30 meters from the Fueling Station Module
  • Galvanized steel construction for resistance to corrosion

Specifcations

Source: Nel Hydrogen

Name FS004 EU SS004 EU FS005 KR SS005 KR ST-AAA US ST-ABA EU
Storage Vessel Type: Steel vessels – Type 1
Maximum Operating Pressure: 50 MPa
and
100 MPa
24
MPa
50 MPa
and
100 MPa
24
MPa
50
MPa
50
MPa
Operating Temperature -20 °C to +40 °C / -4 °F to +104 °F
Scope and
Interface
Turnkey with vessel piping and valve panel, ready for connection to the respective Fueling Station Module
Valve Panel Dimensions L: 629 mm W: 1120 mm H: 2616 mm L: 1.171 mm W: 2.218 mm H: 2.312 mm
Approvals and Certifications PED KGS UL PED
Valves and Safety Leak detection, jet fire protection, double block and bleed
