Those considering hydrogen production options may have seen Proton Exchange Membrane (PEM) and Anion Exchange Membrane (AEM) electrolyzers framed as competing options. Determining which type of electrolyzer is best for a specific project requires a more detailed review, however.

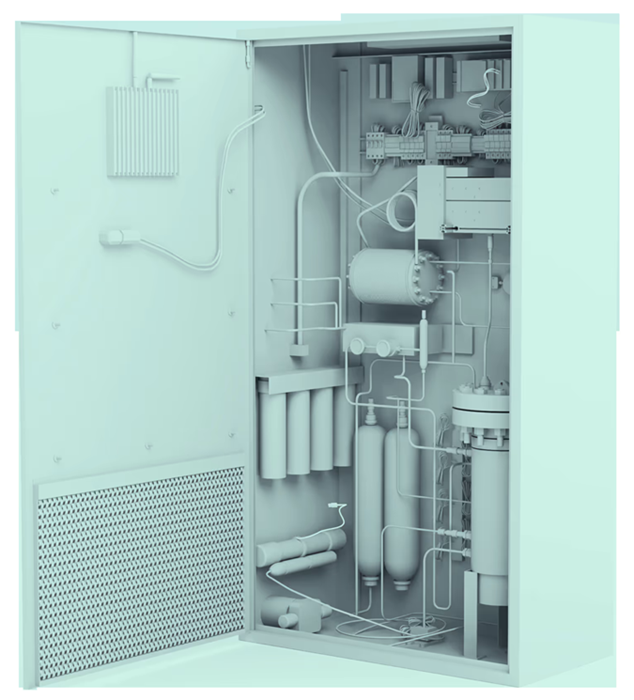

Image Credit: Power to Hydrogen
This article examines the strengths, limitations, and design decisions of each approach, helping operators and developers plan more effectively for their next hydrogen project.
This comparison of PEM and AEM electrolysis provides a robust foundation, whether planning a pilot project or mapping out a large-scale deployment.
Understanding Electrolysis
PEM and AEM electrolyzers both generate power via hydrogen electrolysis. This process generates hydrogen by splitting water (H2O) into hydrogen (H2) and oxygen (O2) using electricity.
The central process is consistent across electrolyzers, but these systems differ in their membrane materials, charge carriers, and operating conditions. These differences affect performance, cost, and durability, so a deeper comparison is warranted.

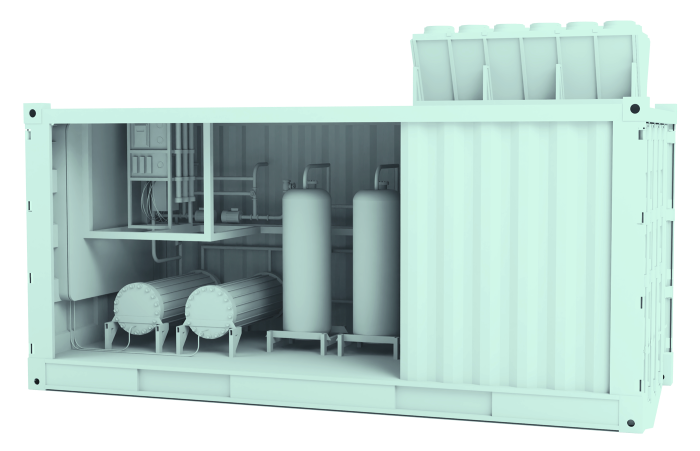

Image Credit: Power to Hydrogen
PEM Electrolysis
A Proton Exchange Membrane (PEM) electrolyzer moves protons through a solid polymer membrane. Water enters the anode side, where it splits into protons, electrons, and oxygen. The protons then travel through the membrane to the cathode.
The membrane allows only positive ions to pass through, resulting in a controlled environment able to support high current densities.
A range of commercial PEM units employs precious metal catalysts such as platinum (Pt) and iridium (Ir), because these materials maintain performance in the cell’s acidic conditions.
PEM stacks also operate at elevated pressures, with many commercial systems featuring balance-of-plant components designed to regulate cooling, water circulation, and power electronics.
Advantages of PEM Electrolysis
PEM electrolyzers support rapid response times, allowing them to quickly ramp up output when electricity prices change and making them well-suited for use in projects connected to renewables or grid-following loads.
PEM systems also effectively accommodate high operating pressures, reducing the need for external compression in some applications. Other benefits include:
- High hydrogen purity
- A compact system size in relation to output
- Robust performance in dynamic operating conditions
These features make PEM systems a good option for behind-the-meter industrial plants, mobility fueling, and flexible grid services.
Limitations and Challenges of PEM Systems
PEM systems use precious metals as catalysts, increasing cost and introducing supply risks for project developers working with large installations. Material demands for other stack components are also increased due to their acidic environment.
Operators working with PEM systems must monitor for catalyst wear and membrane degradation due to the risk of performance shifting over long operating hours.
Using the electrolyzer at high current densities for extended periods also increases operational costs, though this effect is more pronounced for long-duration baseload projects than for intermittent or flexible projects.
Organizations planning large hydrogen hubs must closely assess these factors when comparing technologies.

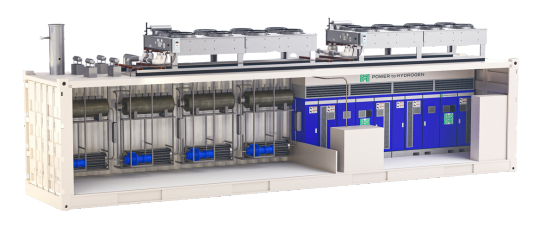

Image Credit: Power to Hydrogen
AEM Electrolysis
Anion Exchange Membrane (AEM) electrolyzers include a membrane that conducts negative ions (hydroxide ions). Water enters the cathode, which is where the system generates hydrogen.
Hydroxide ions travel through the membrane to the anode, where oxygen is produced. The system’s alkaline environment means it can use non-precious-metal catalysts in a range of designs. This use of lower-cost materials helps to lower capital expenses.
Though AEM stacks operate at lower differential pressures than PEM systems, they still offer good efficiency.
Power to Hydrogen is working to advance AEM electrolyzer systems by testing advanced membranes, refining electrode coatings, and developing a hybrid AEM system with more efficient components.
Advantages of AEM Electrolysis
AEM systems reduce dependence on precious metals, enabling new supply chains centered on more abundant materials and enhancing the long-term cost stability of large projects. Other advantages of AEM systems include:
- Reduced potential material costs
- Easier plant balancing in many configurations
- Compatibility with renewable energy due to their favorable efficiency at partial load
AEM systems offer a promising pathway for behind-the-meter industrial loads, distributed hydrogen, and cost-sensitive projects that require durable output without the high catalyst cost of PEM systems.
Current Challenges Facing AEM Systems
Many organizations still regard AEM electrolyzers as a newer technology. Though there is a growing amount of field data for AEM models in large-scale applications, the industry remains committed to testing systems across a diverse array of operating conditions.
Power to Hydrogen has made considerable advances in durability, membrane strength, and long-term catalyst stability under high current density.
Side-by-Side Comparison: PEM Versus AEM
Efficiency and Energy Consumption
AEM and PEM technologies can both produce high-purity hydrogen at commercial-level efficiency, but their efficiency ratings vary with water quality, operating pressure, and power electronics.
PEM systems can maintain stable efficiency across a wide range of load and pressure conditions. Though AEM systems accommodate a slightly narrower range of power and pressure levels, they benefit from lower water quality and purity requirements.
Cost Considerations (CAPEX and OPEX)
AEM systems offer a cost advantage, with lower material costs and simpler component requirements. These enable operators to better meet budget targets for modular or distributed hydrogen installations.
In addition, the longevity of AEM systems continues to improve. This is expected to reduce the operating expenses of AEM systems, which could continue to widen the cost-efficiency gap between AEM and PEM.
The higher cost of PEM systems is attributed to the use of expensive membrane materials and catalysts. The cost gap between AEM and PEM tends to be smaller for smaller projects but widens when developers consider multi-megawatt installations. PEM stacks operating at high intensity for extended periods also result in increased operating expenses.
Materials and Catalyst Requirements
PEM systems use precious metals such as iridium and platinum to enable operation in acidic environments. These metals are key to the systems’ high performance, but add supply concerns and great expense. AEM systems employ catalysts made from nickel (Ni) or other common transition metals, significantly impacting supply chain planning for large-scale hydrogen rollouts.
Durability and Lifetime Performance
PEM has been used for decades, meaning that extensive field data is available, and many commercial units have demonstrated strong lifetime performance when operated within recommended ranges. While degradation mechanisms such as catalyst wear or membrane thinning do occur over time, they tend to be predictable for experienced operators.
Early generations of AEM systems had shorter lifetimes, but this has continued to improve as new electrodes and membranes become available.
Power to Hydrogen’s systems support higher current densities and offer considerably longer runtime than the previous generation of AEM technology. The industry anticipates lifetime performance to improve as materials research accelerates.
Scalability and Commercial Readiness
PEM systems have reached a high state of commercial readiness, with fueling stations, large industrial projects, and multi-megawatt renewable integrations already leveraging PEM technology. PEM service partners, supply chains, and OEM support structures exist across North America, Asia, and Europe.
AEM systems are continuously evolving and becoming technologically adept. They already demonstrate strong efficiency and cost advantages. Many projects are waiting for larger field deployments before committing to multi-megawatt installations, however.
Power to Hydrogen’s hybrid AEM electrolyzers show good momentum in pilot-scale commercial applications and distributed hydrogen projects.
Choosing the Ideal Technology for the Market Segment
Selecting the most suitable technology rarely depends on a single factor: project developers must consider expected runtime, maintenance cycles, electricity price, and long-term expansion goals. Many of Power to Hydrogen’s clients share electrical data, detailed site layouts, and operational constraints prior to making a decision.
PEM is backed by decades of data and is well-suited to projects requiring high pressure, high purity, rapid response, and durability. These include grid-connected systems, large industrial loads, fueling stations, and mobility infrastructure.
AEM is ideal for distributed and cost-sensitive projects that require lower upfront capital costs, simple materials, and flexibility in using renewable electricity. Examples include on-site hydrogen for backup power, hydrogen hubs, and early-stage industrial users preparing for growth.
The Future of PEM and AEM Electrolysis
PEM and AEM electrolysis represent two distinct hydrogen production approaches, and it is anticipated that their capabilities will continue to diverge as further advancements separate them.
PEM is a reliable, commercially ready electrolysis method that has been integrated into global energy projects for many years. AEM, in contrast, is a newer technology that is being actively rolled out in commercial-scale projects, offering additional breakthroughs in dependability and efficiency before it reaches scale.
Power to Hydrogen continues to advance catalysts, coatings, membranes, and stack designs for AEM and hybrid technologies.
Power to Hydrogen’s Role in Advancing Electrolyzer Technology
Power To Hydrogen designs and manufactures hybrid AEM electrolyzers. These systems are engineered for efficiency, reliability, and long asset life, and the company’s hybrid electrolysis technology enables more cost-effective hydrogen production by reducing reliance on precious metals.
Materials are continually tested, field performance is evaluated, and systems are iterated to deliver predictable output with clear cost structures.
Power to Hydrogen works with organizations across the mobility, industrial, and energy markets to develop systems that align with specific project goals.
Many clients approach the company with early-stage plans. The Power to Hydrogen team helps them run cost calculations, compare technologies, and evaluate project-specific variables such as available electrical infrastructure, pressure targets, byproduct handling, and water quality.
The company supports pilot projects, multi-megawatt installations, and long-term deployment plans across a wide range of sectors, with its approach offering a range of benefits, including:
- Non-precious metal catalysts that lower supply risk and stack cost
- Compact, modular stacks able to fit inside standard skid footprints
- Engineering for water quality management, durability, and safe operation
- Integration support that reduces time from purchase to commissioning
