Hydrogen has emerged as a viable option for increased clean energy production, but clean hydrogen production is only part of the solution. The right systems must be used to store and distribute hydrogen if it is to be used effectively.
Image Credit: Scharfsinn/Shutterstock.com
Hydrogen must be integrated into existing energy infrastructure, or new storage and transportation systems must be established to deliver it where it is needed.
Understanding Hydrogen Storage and Infrastructure
Hydrogen storage is the process of storing hydrogen in a way that maintains its availability, purity, and cost-effectiveness until it is required. These storage technologies are key to managing hydrogen supply, allowing excess energy to be stored when demand is low for use as demand increases.
Infrastructure encompasses everything involved in transporting hydrogen from the place of production to its point of usage. Refueling stations, electrolysis plants, and various storage and distribution technologies are all key components of hydrogen infrastructure.
Storage and infrastructure form the framework that dictates safety, price, and the speed of growth in the hydrogen economy. Scaling up hydrogen use across sectors such as transportation, power generation, and industry is virtually impossible without reliable storage and well-planned infrastructure.
Why Energy Storage and Infrastructure Are Key to Hydrogen Adoption
Hydrogen addresses a critical challenge in energy systems: how to effectively store energy for use in periods when supply and demand do not match.
Electricity from solar or wind often peaks when it is not required, but hydrogen allows any surplus power to be stored in chemical form and used hours, days, or months later as required. Hydrogen becomes practical for everyday use when a reliable storage and delivery system is in place.
- Consistent power delivery is vital for industries such as ammonia production and steelmaking, which typically require steady fuel supplies because they operate 24 hours a day.
- Solar and wind output changes rapidly, but hydrogen can help balance these renewables by storing surplus power for use when the grid needs an additional power source.
- A constant hydrogen supply bridges the gap when heavy sectors like steel, ammonia, and long-haul transport are looking to decarbonize but cannot switch to batteries alone.
- Market confidence also improves as investors support projects when they see clear distribution pathways and storage rules that protect their capital.
Key Challenges and Opportunities
The most common roadblocks to more widespread hydrogen storage applications include:
- Complexity and cost of storage at scale
- Infrastructure gaps between production and end-use locations
- Material limitations in pipelines and tanks
- Standardization issues across global markets
These challenges also create momentum for innovation. There are now a number of public-private partnerships focusing on overcoming these barriers to accelerate deployment and reduce costs.
Widespread exploration is taking place into modular hydrogen electrolyzer hubs, emerging tank materials, and hybrid storage systems, such as hydrogen electrolyzers used in conjunction with fuel cell battery banks.
Hydrogen Storage Methods
Different applications require different storage techniques. The three primary hydrogen storage categories are fuel cell battery style, liquid, and compressed gas.
Solid-State Hydrogen Storage
Hydrogen can be stored within or on the surface of certain solids, referred to as metal hydrides. Metals like magnesium and palladium alloys absorb hydrogen on their surfaces and release it when heated. Solid-state storage is extremely safe because pressure stays low.
Liquid Hydrogen Storage
Hydrogen can be liquefied to store more of it in less space. Cooling hydrogen to -253 °C allows liquid hydrogen to be stored in cryogenic tanks, resulting in hydrogen occupying 1/800th the volume of its gaseous state.
This reduction facilitates high energy density by volume, making it an ideal solution for compact and lightweight applications. Filling up works similarly to using a diesel pump, except there is an additional nitrogen purge step to clear the lines.
Liquid hydrogen provides more energy per gallon than compressed gas, but cooling it to this temperature is expensive and consumes a large portion of its energy potential.
Liquid storage is less attractive for long-term applications due to evaporation losses and boil-off, but advanced insulation can help mitigate these issues.
Hydrogen Gas Storage
The most commonly used hydrogen storage method is high-pressure tanks at pressures between 350 and 700 bar (5000 to 10,000 psi).
These tanks are often made from carbon fiber composites to ensure they can withstand high pressures and maintain safety. Compressing and storing gas is relatively simple, with well-understood pressure systems employed across various industries.
Stationary storage for backup power systems and fueling stations typically makes use of large steel or composite tanks. Mobile storage, for example, in fuel cell vehicles, necessitates the use of lightweight carbon fiber cylinders rated for 700 bar pressure.
Real-time pressure monitoring, safety mechanisms, and regulatory codes ensure these systems are resilient and reliable.

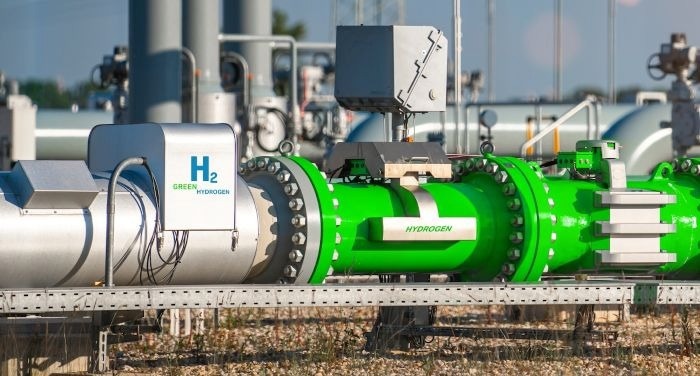

Image Credit: Power to Hydrogen
Hydrogen Infrastructure
Hydrogen could account for up to 22% of global energy demand by 2050, but this would require more than $11 trillion in infrastructure investment, such as storage facilities, pipelines, electrolyzers, and fueling stations.
It is important that each step in the infrastructure and energy grid connects smoothly so the whole system performs efficiently. Wider hydrogen infrastructure also covers grid integration, refueling stations, production facilities, transport networks, and end-use facilities.
Hydrogen Production Facilities
Hydrogen production facilities are the foundation for all hydrogen infrastructure.
Production sites generate hydrogen via three primary processes: electrolysis (using Anion Exchange Membrane (AEM) electrolyzers, alkaline electrolyzers, or Proton Exchange Membrane (PEM) electrolyzers), biomass reforming, or steam methane reforming.
Hydrogen’s color classification reflects its production method, with each type associated with distinct infrastructure implications.
- Green hydrogen is produced via electrolysis using renewable electricity. This method requires access to a reliable water supply, a consistent renewable power source, and enough space for electrolyzers.
- Blue hydrogen is produced from natural gas using steam methane reforming, along with carbon capture and storage (CCS). Blue hydrogen infrastructure leverages high-temperature reactors, large-scale gas inputs, and long-term carbon sequestration capabilities. This approach generally connects to natural gas pipelines and underground carbon dioxide (CO2) storage sites.
- Gray hydrogen uses an identical process to blue hydrogen, but does not include capturing emissions. Rather, grey hydrogen relies on existing refinery infrastructure and fossil fuel supply chains, making it less climate friendly but more compatible with legacy systems.
Centralized Versus Decentralized Production
New infrastructure projects typically combine production with immediate storage and compression to minimize transport costs. Co-location also boosts system efficiency and reduces energy losses.
Developers choose between two main models depending on project scale and end-use requirements: centralized production or decentralized production.
Centralized hubs incorporate large-scale hydrogen production at industrial-scale facilities. The produced hydrogen is transported off-site via trucks, pipelines, or other forms of transportation.
These hubs require extended transport networks but see significant benefits from economies of scale. Linking the power grid to hydrogen storage offers a two-way flow of value. Electrolyzers operate and refill hydrogen tanks when demand for electricity decreases, while integrated hydrogen storage can ease strain and boost stability during peak grid loads.
Decentralized nodes feature smaller-scale hydrogen production. These nodes are situated near areas of hydrogen fuel usage, such as industrial sites or refueling stations, and generally use modular electrolyzer systems to bring hydrogen generation closer to the point of use.
This form of hydrogen production eliminates the need for transportation, making it a more cost-effective option for producing smaller quantities of hydrogen. It also improves energy security, especially for facilities or communities that are vulnerable to supply disruptions.
AEM Electrolyzers Designed for On-Site Storage
There is no need for hydrogen to follow the same path as conventional fuels. The right technology enables energy systems to store and use hydrogen locally.
Power to Hydrogen supports this shift by offering production and storage systems designed to integrate with existing operations, meaning that no significant infrastructure overhaul is necessary.
The company’s electrolysis systems leverage AEM technology, which enables them to operate at lower temperatures and employ non-precious metals, thereby reducing capital costs.
These systems are also compact and easy to deploy near the point of use. A modular stack allows systems to scale up or down and adapt to the application’s needs, whether that involves reducing emissions at a manufacturing plant or powering a remote communications site.
