Jun 9 2010
Raum Energy offers 1.5 kW wind turbine system. This wind turbine is suitable for places where the average wind speed is 3 m/s or more. This wind turbine can provide a maximum of 260 kWh per month with an average wind speed of 5.4 m/s. This wind turbine is built rugged and continuously operates in all types of weather conditions.
The furling mechanism incorporated in the wind turbine gets initiated at reaching 10 m/s wind speed and prevents damages to the turbine blades and allows generation of peak output at any wind speed. This 1.5 kW Wind Turbine System offered by Raum Energy efficiently works along with solar and geothermal systems.

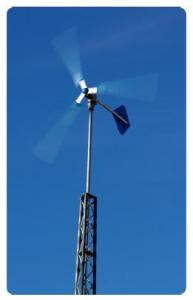

1.5 kW Wind Turbine System
This wind turbine weighing 39 kg incorporates three horizontal axis blades made of fiberglass reinforced plastic and each blade measures 2.9 m in diameter. The wind turbine covers a swept area of 6.8 m². The peak out of this wind turbine is 143 V and its peak current value is 3.6 A. This wind turbine incorporates a 2 HP generator with NEMA class B rating. The design of the wind turbine allows a maximum power production at 11 m/s wind speed and 800 RPM. This wind turbine can survive wind speeds up to 50 m/s and its maximum survival RPM is 1400. The active brake system deployed in the wind turbine gets activated at 15 m/s wind speed.
The Raum1500i Grid-tie inverter incorporated in the turbine offers 1500 W input power and has a three phase electrical output. The maximum input voltage of the inverter is 170 V, maximum input current is 7.8 A and maximum output voltage is 240 V. The freestanding steel truss tower incorporated in the system survives a maximum wind speed of 45 m/s.
Source: http://www.raumenergy.com
