May 11 2010
Solar Depot offers the Yingli SolarYL230P-29b 230 W module. This model incorporates 60 polycrystalline solar cells measuring 6.14 inch x 6.14 inch. The cells are placed with a high transmission coarse-textured glass offering a module series competence of 14.1%.
The YL230P-29b 230 W module has a power tolerance of +/-3% thus reducing the PV system mismatch loss. The front cover of this module is made of 3.2 mm thickness tempered glass and the frame offered in silver color is made of strong anodized aluminum alloy.

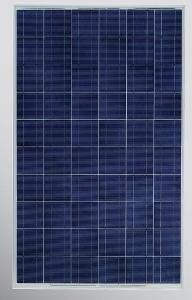

Yingli Solar YL230P-29b 230 W Module
The length x width x thickness of the Yingli SolarYL230P-29b 230 W module supplied by Solar Depot is 65.0 inch x 39.0 inch x 2.0 inch and weighs 43.7 lbs. The six diodes IP65 junction box utilized in the model has a length x width x thickness measurement of 6.0 inch x 4.8 inch x 1.0 inch and uses a UV resistant IP65 MC4 locking connector for connecting the plug. The Yingli SolarYL230P-29b module is designed to offer a Pmax of 230 W, a power output tolerance of +/- 3%, a Vmpp of 29.5 V, an Impp of 7.80 A, a Voc of 37.0 V, an Isc of 8.40 A and a maximum system voltage of 600 V.
The Yingli SolarYL230P-29b 230 W is designed to withstand a maximum wind load of 50 psf and a snow load of 113 psf. This solar module meets the certificate requirements of IEC61215, IEC61730, UL1703, Class C Fire Rating, and ISO9001.
Source: http://www.solardepot.com
