Apr 27 2010
Woodheat offers the Ecotec Air 25 kW hot-air boiler utilizing pellet as fuel. This hot-air boiler is designed to heat an area of 4000 m³ area quickly. The fully automatic 25 kW hot-air boiler automatically switches on and off the system. This model does not utilize water for heating purposes and do not suffer from freezing problem. This boiler is designed with vertical pipes and has a large ash collecting box to save on maintenance costs.
Ecotec Air 25 kW Hot-air Boiler
The height × width × depth measurement of the Ecotec Air 25 kW hot-air boiler provided by Woodheat is 1950 mm x 600 mm x 1300 mm and weighs 300 kg. This model has a lowest ceiling height of 2300 mm, a flue height of 1441 mm, an external flue diameter of 160 mm, and an external ventilation connection of 315 mm. The boiler has an airflow output rated at 1300 m3/h, a boiler air pressure output of 300 Pa, and a boiler hot air temperature output of 60–75°C. The ash box volume of this model is 33 L. The Ecotec Air 25 kW hot-air boiler uses a 230 VAC, 1700 W power supply.

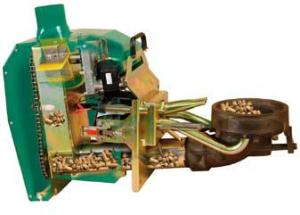

The hot-air boiler is designed to combust the chips fully including the small chips in the pellets providing safety. This burner used in the model can handle pellets with high level of ash content. This boiler is perfect for use in farms, large buildings and meeting halls.
Source: http://www.woodheat.ie/
