The Thermo Scientific™ 5014iQ Beta Attenuation Monitor is designed to track levels of TSP, PM-2.5, PM-10, and PM-1 in the surrounding air. Its automatically advancing filter tape captures PM samples in a clean area, minimizing the need for attended operation.
To help reduce particle loss, user-defined parameters such as mass accumulation limits, flow rates, and continuous pattern advances are used to control the filter tape advancement.
The device monitors the sample conditions, removes moisture effects, adjusts the control system to heat only when necessary, and ensures that volatile aerosols are preserved for accurate measurement.
Product Overview
Specifications. Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
. |
| Flow Rate |
1 m3/h (16.67 L/min) measured across an internal subsonic orifice, user selectable 14 to 20 lpm |
| Gases Measured |
Carbon-14 (C-14), < 3.7 MBq (<100 μCi) |
| Temperature (English) Operating |
The temperature of sampled air may vary -30 to 50 °C. 5014iQ Monitor must be weather protected within range 4 to 40 °C, an optional complete outdoor enclosure provides complete weather protection |
| Accuracy |
±5% using SI-traceable mass foil set (for mass measurement) |
Certifications/
Compliance |
U.S. EPA PM-2.5 equivalent monitor (EQPM-1609-183) |
Communication
Protocols |
MODBUS, TCP/IP, Gesytec (Bayern-Hessen), streaming data and NTP (Network Time Protocol) protocols. Simultaneous connections from different locations over Ethernet |
| Concentration Measurement Range |
60 to 3,600 seconds and 24-hour |
| Data Averaging |
Every 1 second |
| Depth (English) |
21.16 in. |
| Depth (Metric) |
53.8 cm |
| Description |
5014iQ Beta Attenuation Monitor |
Electrical
Requirements |
Designed to meet CE: EN61326: 1997 + A1: 1998 + A2: 2001 + A3: 2003, EN61010-1 UL: 61010-1: 2004; CSA: C22.2 No. 61010-1: 2004; FCC: Part 15 Subpart B, Class B, UKCA |
| Height (English) |
12.2 in. |
| Height (Metric) |
31 cm |
| Measurement Range |
0 to 10,000 μg/m3 |
| Outputs |
- Standard ports 3 full-speed USB ports (one in front, two in rear) 1 gigabit ethernet port
- Analog I/O (optional) 4 isolated voltage inputs 0–10 V 6 isolated analog voltages outputs, with 4 selectable ranges 6 isolated analog current outputs, with 2 selectable ranges
- Digital I/O (optional) 16 digital inputs (TTL) 8 solenoid driver outputs,10 digital reed relay contact outputs
- Serial ports (optional) 1 RS-232/485 port, 1 RS-485 external accessory port
|
| Precision |
±2.0 μg/m3, <80 μg/m3, 4–5 μg/m3 > 80 μg/m3 (24-hour average) |
| Resolution |
0.1 μg/m3 |
Sampling Flow
and Control |
- Sample flow precision: ±2% of measured value
- Sample flow accuracy: <5% of measured value
|
| Wattage |
- 100–240 VAC, 50–60 Hz recommended, 805 watts (115 V)
- 880 watts maximum (220–240 V (instrument, heater & pump)
|
| Weight (English) |
< 55.1 lbs. |
| Weight (Metric) |
< 25 kg |
| Width (English) |
16.73 in. |
| Width (Metric) |
42.5 cm |
| Unit Size |
Each |
- Ongoing evaluation
- (EQPM-0609-183) equivalent monitor
- US EPA approved PM-10 (EQPM-1102-150) and PM-2.5
- High resolution, accuracy, and low detection limit
- ePort communication software and an improved user interface
- Improved connectivity over Ethernet
- Prolonged absence of supervision
- Remote access to data

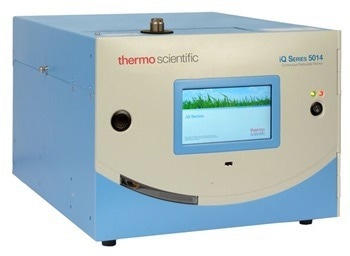

5014iQ Beta Attenuation Monitor. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments

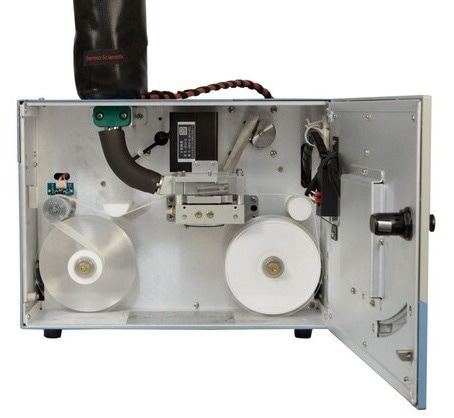

5014iQ Beta Attenuation Monitor. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
