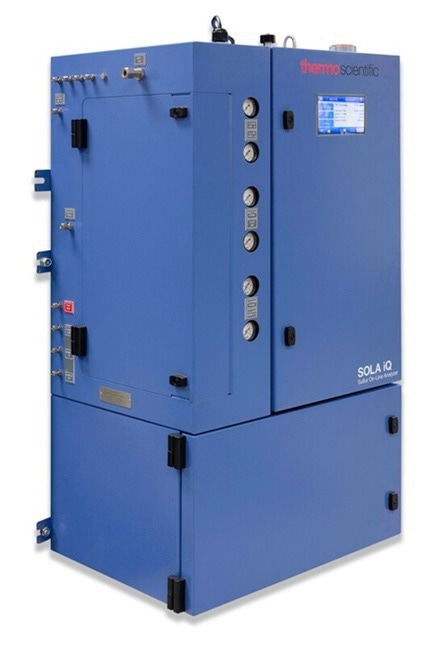

The Thermo Scientific™ SOLA™ iQ Online Sulfur Analyzer measures total sulfur content in liquid or gas phase samples to optimize processes, improve profitability, and comply with regulations.
The SOLA iQ Analyzer, which uses unique Pulsed Ultraviolet Fluorescence (PUVF) technology and the proven Pyrolysis system, builds on the success of the SOLA II range of total sulfur analyzers, which have thousands of units installed for measuring total sulfur concentration at the world's leading oil and gas companies.
The SOLA iQ Online Sulfur Analyzer reduces the need for costly and time-consuming laboratory sampling to determine total sulfur content in refinery products such as gasoline, diesel, kerosene, and jet fuel, as well as several process gas samples such as natural gas, NGL, and SynGas. The SOLA iQ Analyzer provides an online adaptation of ASTM D5453, D6313, D6222, and ISO 20846.
-
Features
- Continuous regulation of UV light intensity guarantees calibration is maintained over an extended length of time
- Quick access for maintenance and > 99 % uptime
- Automatic density compensation for ppm sulfur wt/wt measurements
- Semi-continuous operation: change in sulfur content is indicated at each injection cycle
- Pure O2 is not required, avoiding the dangers associated with using oxygen in a process environment
- Intuitive color touchscreen user interface
- Measurement ranges from 2 ppm to 100 %
- Limits of detection as low as 25 ppb
SOLA iQ Applications
Clean Fuels
The SOLA iQ Analyzer's exceptional stability and precision allow refiners to make fast process modifications, improving the economic efficiency of desulfurization and fuel blending processes.
- SOLA iQ Liquid & SOLA iQ Liquid Trace Analyzer
Flare Gas and Condensable Vapors
The extremely accurate SOLA iQ Flare Analyzer has a dynamic measurement range of 10 ppm to 100 % S by volume and a quick high-to-low response time, allowing for consistent flare stack sulfur emission reporting.
- SOLA iQ Condensible Vapors (CV) Analyzer
- SOLA iQ Condensible Vapors (CV) Trace Analyzer
- SOLA iQ Flare Analyzer
Multi-Calibration/Multi-Stream
The SOLA iQ Analyzer measures various streams with varying sulfur contents (e.g., batch processing, reactor inlet/outlet, etc.) using a single analyzer.
- SOLA iQ Liquid Analyzer
- SOLA iQ Vapor Analyzer
- SOLA iQ Condensible Vapors (CV) Analyzer
- SOLA iQ Flare Analyzer
- SOLA iQ Trace Analyzer
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| Specifications |
Certifications/
Compliance |
NEC Class I, Division 2, Groups B, C & D. T2/T3 & T4 (T4 rating is application dependent)
NEC Class I, Division 1, Groups B, C & D. T2/T3 & T4 (T4 rating is application dependent)
CSA with associated “C/US Mark” Class I, Division 2, Groups B, C & D. T2/T3 & T4 (T4 rating is application dependent)
CSA with associated “C/US Mark” Class I, Division 1, Groups B, C & D. T2/T3 & T4 (T4 rating is application dependent)
ATEX Zone 1 Ex px IIC T3
ATEX Zone 2 Ex pz IIC T3 IECEx Zone 2 Ex px IIC T3 |
| Communication Details |
AutoCONFIG™ Software: Security-protected access to all analyzer setup and configuration parameters and all process and diagnostic data. Connect via a standard PC across your Local Area Network. Download 30,000 data records (process and analyzer functions), typically up to 24 hours of records (user configurable). |
| Current Outputs |
Relay and digital outputs
Eight relay outputs rated 6 A at 240 VAC
Eight solid state relay outputs rated 0.2 A at 120 VAC/VDC |
| Depth (Imperial) |
18 in. |
| Depth (Metric) |
459 mm |
| Display |
Front panel mounted seven inch color touchscreen user interface to access analyzer functions and diagnostic data including sulfur concentrations, oven and furnace temperatures, PMT and lamp voltages, detector flow rate and more. |
| Electrical Requirements |
100/240 V, 50/60 Hz, 18 A circuit recommended, 18 A maximum during warm-up cycle, 7–8 A once achieving operational temperatures |
| Height (Imperial) |
Zone 1: 56 in., Zone 2: 45 in. |
| Height (Metric) |
Zone 1: 1420 mm, Zone 2: 1130 mm |
| Hertz |
50/60 Hz |
| Inputs |
Four inputs (user configurable as 420 mA or 0–5 V) |
| Linearity |
Ranges ≥ 10 ppm: ± 2 % of full scale, one sample injection per minute; ± 1 % of full scale, two sample injections per minute Ranges ≤ 10 ppm: ± 2 % of full scale, two sample injections per minute |
| Measurement Ranges |
SOLA iQ Liquid: Full scale ranges from 5 ppm to 5 % – single or dual range analyzer
SOLA iQ Vapor: Full scale ranges from 5 ppm to 1 % – single or dual range analyzer
SOLA iQ Condensible Vapors (CV): Full scale ranges from 5 ppm to 1 % – single or dual range analyzer
SOLA iQ Flare: Full scale ranges from 10 ppm to 100 % – dual range analyzer
SOLA iQ Trace: Full scale ranges from 2 ppm to 50 ppm – single or dual range analyzer |
| No. of Process Streams |
Single or multiple (up to four) stream control via SOLA iQ pneumatic outputs, stream selector hardware to be supplied by customer/third party |
| Outputs |
Four 4–20 mA outputs |
| Precision |
SOLA iQ Liquid & Vapor: Ranges ≥ 10 ppm ± 2 % of full scale, one sample injection per minute; ± 1 % of full scale, sample sample injections per min
SOLA iQ Liquid & Vapor: Ranges < 10 ppm ± 2 % of full scale, two sample injections per minute
SOLA iQ Flare: ± 1 % of full scale, two sample injections per minute
SOLA iQ Trace: ± 1 % of full scale, two sample injections per minute |
| Response Time |
Every second, typically five to six minutes to 90 % of new value (application dependent) |
| Serial Connections |
RS232 Serial Port |
| Width (Imperial) |
24 in. |
| Width (Metric) |
610 mm |
| Zero Grade Air |
3.8–6.9 barg, 180–210 L/min. (application dependent), Oil Free, -40 °C (-40 °F) dew point |
| Ambient Temperature |
12–40 °C |
| Detection Limits |
1.25 % of full scale or 125 ppb (whichever is greater) |
| Detector Type |
Pulsed UV Fluorescence (PUVF) with Pyrolyzer for Total Sulfur Measurement |
| Product Type |
SOLA iQ Online Sulfur Analyzer |
| Voltage |
100/240 V |
| Unit Size |
Each |
