With a Thermo Scientific™ iQ Series Gas Analyzer, users can access their analyzer's data around the clock. As an incredibly precise yet durable solution, the iQ Series Gas Analyzers are designed to record and improve over time while cutting down on troubleshooting time.

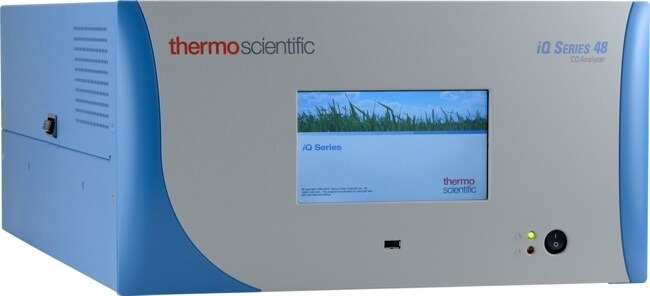

The Thermo Scientific™ 48iQ CO monitoring analyzer provides the same performance level to detect carbon monoxide poisoning, while detecting the quantity of CO in ambient air using the gas filter correlation approach.
Overview
Users can take advantage of the iQ Series Gas Analyzers' intelligence, which allows them to foresee and avert problems. The following characteristics are present in Thermo Scientific™'s next-generation gas analyzer design:
Predictive Diagnostics
Plug-and-play components and improved serviceability aid in preventing issues before they arise. Users can enjoy 24/7 access to their analyzer data while cutting down on troubleshooting time, thanks to the innovative, interchangeable DMC modules in an incredibly precise yet durable method.
Proactive Communications
Email updates and the iQ360 aid in preserving peak performance. When an alert is set off, users who have subscribed to the iQ360 service have direct communication between their device and Thermo Scientific™ technical support personnel. The technical support staff drafts a correction plan and emails it to the customer's staff.
With the iQ Series Gas Analyzers, users can take charge of their day and avoid surprises.
Personal Device Connectivity
Real-time, continuous remote monitoring is now made possible with the iQ companion mobile device app. The iQ app provides instant access to maintenance updates and product documentation, simple ways to communicate with users, and remote monitoring of iQ gas analyzers.
Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
. |
| Certifications/Compliance |
CE, TUV-SUD Safety, RFCA-0981-054, UKCA |
| Communication Ports |
Serial Ports:
One RS-232/485 port 1
RS-485 external accessory port
Other Ports:
Three full speed USB ports (one in front, two in rear)
One Gigabit ethernet port |
| Communication Protocols |
MODBUS, streaming |
| Depth (Imperial) |
24 in. |
| Depth (Metric) |
609 mm |
| Description |
48iQ Carbon Monoxide Analyzer |
| Detection Limit |
0.04 ppm (30-second averaging time) |
| Electrical Requirements |
100–240 VAC 50/60 Hz 275 Watts |
| Height (Imperial) |
8.72 in. |
| Height (Metric) |
221.48 mm |
| Measurement Range |
0– 10,000 (ppm or mg/m3) |
| Outputs |
Six isolated analog voltages outputs, with four selectable ranges
Six isolated analog current outputs, with two selectable ranges; 10 Digital reed relay contact outputs
Eight solenoid driver outputs |
| Precision |
+/-0.1 ppm |
| Span Drift |
±0.5 % full scale (24 hour) |
| Temperature (Imperial) Operating |
41–113 °F |
| Weight (Imperial) |
34.3 lb. |
| Weight (Metric) |
15.6 kg |
| Width (Imperial) |
16.75 in. |
| Width (Metric) |
424.45 mm |
| Zero Drift |
<0.1 ppm (24 hour) |
| Detectable Analytes |
Carbon Monoxide |
| Flow Rate |
1.0 L/min. (1 atm inlet pressure) |
| Inputs |
Four Isolated Voltage Inputs 0–10 V, 16 Digital Inputs (TTL) |
| Linearity |
±1 % full scale <1000 ppm; ±2.5 % full scale >1000 ppm |
| Response Time |
60 seconds (30-second average time) |
| Temperature (Metric) Operating |
5–45 °C |
| Zero Noise |
0.02 ppm RMS (30-second averaging time) |
| Unit Size |
Each |
