Thermo Scientific™ iQ Series Gas Analyzers offer round-the-clock access to analyzer data. These analyzers have been designed for capability enhancement over time, thereby reducing troubleshooting duration with a highly accurate and robust solution.

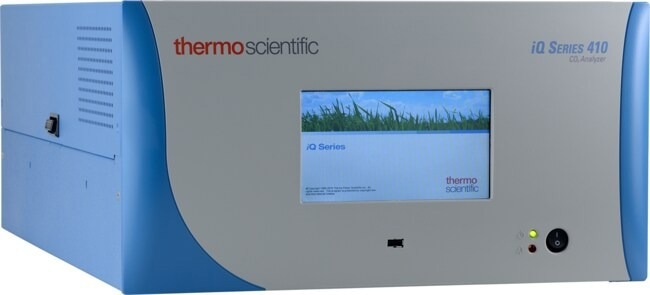

The Thermo Scientific™ 410iQ Carbon Dioxide Gas Analyzer (CO2 analyzer) delivers equivalent performance in measuring carbon dioxide (CO2) concentration in emissions, employing advanced NDIR optical filter technology.
Experience the continuous intelligence of the iQ Series Gas Analyzer, backed by a two-year warranty. This next-generation platform of gas analyzers offers the following features:
Predictive Diagnostics
Proactively address issues before their emergence by leveraging enhanced serviceability and plug-and-play components. Continuous round-the-clock access to the analyzer's data aids in reducing troubleshooting duration through the use of innovative, interchangeable DMC modules within a highly accurate and robust solution.
Proactive Communications
Ensure optimal performance with iQ360 and email notifications. By subscribing to the iQ360 service, the instrument will directly notify the technical support team when an alarm is triggered. The technical support team will create a corrective action plan and send it to the personnel via email.
Users can avoid unexpected issues and manage the day effectively with the iQ Series Gas Analyzers.
Personal Device Connectivity
Real-time, continuous remote monitoring is achievable through the iQ companion mobile device application. The iQ app facilitates the remote oversight of iQ gas analyzers, provides simplified methods for contacting, and offers immediate access to maintenance alerts as well as product documentation.
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
. |
| Certifications/Compliance |
CE, TUV-SUD Safety, UKCA |
| Communication Ports |
Serial ports:
One RS-232/485 port;
One RS-485 external accessory port
Other ports:
Three Full Speed USB ports (one in front, two in rear)
One Gigabit ethernet port |
| Communication Protocols |
MODBUS, Streaming, Gesytec (Bayern-Hessen) |
| Depth (Imperial) |
24 in. |
| Depth (Metric) |
609 mm |
| Description |
410iQ Carbon Dioxide Gas Analyzer |
| Detection Limit |
1.0 ppm (60-second averaging time) |
| Electrical Requirements |
100–240 VAC 50/60 Hz, 275 Watts |
| Height (Imperial) |
8.72 in. |
| Height (Metric) |
221.48 mm |
| Measurement Range |
0–10,000 ppm |
| Outputs |
Six isolated analog voltages outputs, with four selectable ranges
Six isolated analog current outputs, with two selectable ranges;
Eight solenoid driver outputs
10 Digital reed relay contact outputs |
| Precision |
+/- 1.0 % of reading |
| Span Drift |
±2 % of reading (24 hour) |
| Temperature (Imperial) Operating |
41–113 °F |
| Voltage |
100/240 V |
| Weight (Imperial) |
31.3 lb. (standard), 30.1 lb. (high level) |
| Weight (Metric) |
14.2 kg (standard), 13.7 lb. (high level) |
| Width (Imperial) |
16.75 in. |
| Width (Metric) |
424.45 mm |
| Zero Drift |
±1.0 ppm (24 hour) |
| Detectable Analytes |
Carbon Dioxide |
| Flow Rate |
1.0 L/min. (1 atm inlet pressure) |
| Inputs |
Four Isolated Voltage Inputs 0–10 V, 16 Digital Inputs (TTL) |
| Linearity |
±1.5 % of span (at concentrations of 10–100 % of span) |
| Response Time |
90 seconds (30-second average time) |
| Temperature (Metric) Operating |
5–45 °C |
| Zero Noise |
0.5 ppm RMS (60-second averaging time) |
| Unit Size |
Each |
