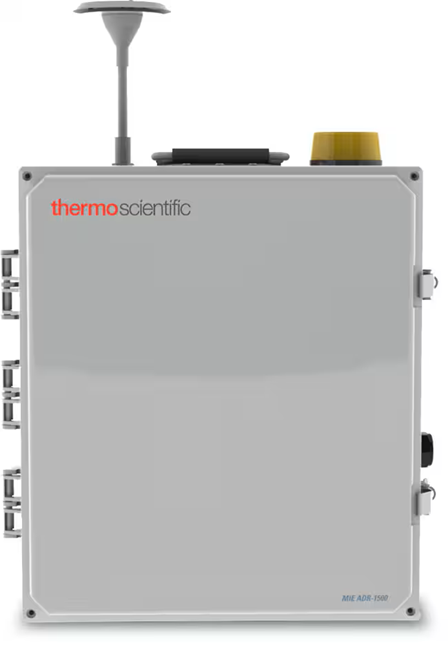

The ambient, real-time Thermo Scientific™ ADR1500 Area Dust Monitor is easy to transport and install for continuous monitoring.
The extremely sensitive light-scattering photometer (nephelometer) technology found in the Thermo Scientific™ pDR series is employed in the Thermo Scientific Model ADR1500 Dust Monitor. The concentration of airborne particles flowing through the sensing chamber is directly correlated with the intensity of the light they scatter.
With continuous measurements of airborne particle concentrations for total particulate matter and cut-points ranging from PM10 to PM1, this optical arrangement gives the best response to particles.
The ADR1500 has a temperature and relative humidity (RH) sensor, as well as an internal heater, to reduce the positive bias caused by high ambient RH. Furthermore, the flow control is really volumetric, with digital feedback from the onboard barometric pressure sensor, temperature sensor, and calibrated differential pressure across a precise orifice. The ADR1500 incorporates the principles of real volumetric flow, which results in an exact sample volume and a precise particle cut-point.
Key Features
- Multiple power and communications capabilities
- Volumetric flow control
- Durable, weatherproof IP65 enclosure
- Modular optics and long-life primary HEPA filter for ease of servicing
Additional Information
- The detected particulate matter concentration is shown in real time on the two-line LCD readout display.
- Additional values that can be presented include run start time and date, time averaged concentrations, elapsed run time, and many more.
- Flexible power capabilities allow the ADR1500 to operate on AC (100–240 VAC), external DC (12–24 VDC), or an internal battery.
- Communications options are available for USB, RS-232, analog. and wireless capabilities.
- The compact and sturdy device is ready for quick deployment and unattended operation.
- A top-mounted handle enables simple transport and installation, with mounting options available for wall, post, or tripod locations.
Recommended for
- Fugitive dust monitoring
- Perimeter monitoring
- Area monitoring
- Site remediation
- Alarm conditions
- Asthma studies
- Exposure monitoring
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| Specifications |
| 2-sigma Values |
± 0.5 % of reading or ± 0.0015 mg/m3, whichever is larger, for 10-second averaging time |
| Accuracy |
± 5 % of reading ± precision) traceable to SAE Fine test dust |
Aerodynamic Particle
Cut-Point Range |
1–10 μm, with optional cyclone accessories |
| Alarm Averaging Time |
Real time (one to 60 seconds) or STEL (15 minutes) |
| Alarms |
Load impedance > 100 kw , Alarm ON = short to ground, Alarm OFF = open |
| Certifications/Compliance |
UKCA |
| Concentration Measurement Range |
0.001–400 mg/m3 (auto-ranging) |
| Data Logging Averaging Periods |
One second to one hour |
| Depth (Imperial) |
17 in. |
| Depth (Metric) |
215 mm |
| Description |
Area Dust Monitor |
| Frequency |
50/60 Hz |
| Height (Imperial) |
21 in. |
| Height (Metric) |
431 mm |
| Optional Cyclones |
GK 2.05 (Red) primarily for PM4 through PM10, SCC 1.062 (blue) primarily for PM1 through PM4 |
| Particle Size Range |
0.1–10 µm |
| Precision |
± 2 %, for one-second averaging time |
| RH correction |
± 0.2 % of reading or
± 0.0005 mg/m3, whichever is larger, for 60-second averaging time |
| Real-time Analog Signal |
0–2 V and 4–20 mA, with selectable full scale ranges between 0.1 and 400 mg/m3; 0–0.1, 0–0.4, 0–1.0, 0–4.0, 0–10, 0–40, 0–100, and 0–400, mg/m3 |
| Real-time Digital Signal |
Concentration, flow, temperature, relative humidity, barometric pressure, time, date |
| Repeatability |
± 0.005 mg/m3, for one-second averaging time |
| Resolution |
0.1 μg/m3 |
| Run Summary |
Site number, average and max. concentrations, time/date of maximum, number of logged points, start time/date, elapsed time (run duration), averaging (logging) period, calibration factor and tag number |
| Scattering Coefficient Range |
1.1 x 10-6 to 0.6 m-1 (approximately) @ l = 880 nm |
| Serial Interface |
High speed, USB/RS-232 (reserved for wireless applications), 19,200 baud |
Temperature (Imperial)
Operating |
14–122 °F |
| Voltage |
100/240 VAC, 12/24 VDC for solar or auxiliary battery options |
| Weight (Imperial) |
28.5 lb. |
| Weight (Metric) |
12.9 kg |
| Width (Imperial) |
17 in. |
| Width (Metric) |
431 mm |
| Flow Rate |
1–3.5 L/min. |
Temperature (Metric)
Operating |
10–50 °C |
| Unit Size |
Each |
