With this lightweight, inherently safe portable gas leak detector, users can quickly identify fugitive emissions of both organic and inorganic compounds for Method 21 compliance, LDAR applications, and site remediation.

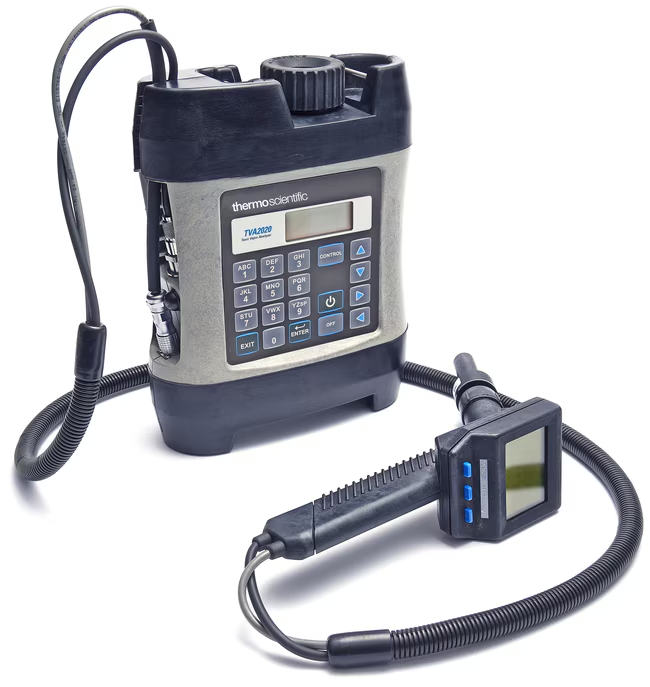

TVA2020 Toxic Vapor Analyzer. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
The Thermo Scientific™ TVA2020 Toxic Vapor Analyzer can be set up as as an FID analyzer (flame ionization detector) or as a dual detection FID analyzer and PID analyzer (photo ionization detector). Reduced response times, improved user-serviceability, and Bluetooth™ connection are important characteristics.

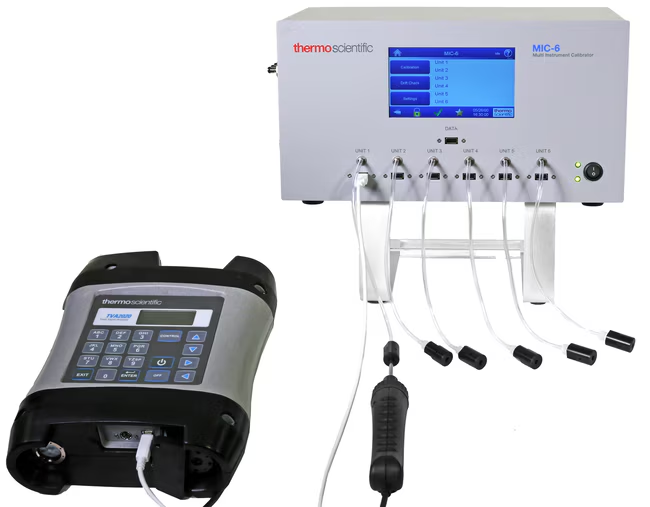

TVA2020 Toxic Vapor Analyzer. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Easy Operation
The TVA2020 Toxic Vapor Analyzer is smaller than the majority of standalone FID analyzers and 21 % lighter than previous models. As well as being easy to service in the field, the lightweight and compact design minimizes fatigue for true portability. A basic or improved probe, a carrying case, and a hydrogen refill assembly are among the other options.
Concentration data is transmitted via optional Bluetooth communication to a portable device that houses the LDAR software database. This eliminates the need to transfer files after monitoring and increases access to route information.
The Technology Users Expect
Detect gas leaks from refineries and chemical industries to ensure compliance with the US EPA Method 21 and LDAR programs. The TVA2020 Toxic Vapor Analyzer has an FID for measuring organic compounds with high sensitivity. The FID technique provides a large dynamic and linear range, resulting in steady and repeatable responses.
The analyzer supports both FID and PID technologies, allowing for simultaneous detection and better analytical capabilities. This dual setup can produce faster readings of organic and inorganic compounds than a single detector technology and offers more complete gas coverage than PID and FID analyzers of comparable size.
After conducting a primary calibration (the calibration kit is provided), the TVA2020 Analyzer can be configured by enabling internal logging settings, downloading a monitoring route, connecting via Bluetooth, setting alarm levels, and activating response factors.
Certifications
- ATEX: CE0359 Ex II 2 G Ex d ib IIC T3 Gb
- IECEx: Ex d ib IIC T3 Gb
- USA: Class I, Division 1, Groups A,B,C,D T3
- Canada: Class I, Zone 1, Ex d ib IIC T3 Gb
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
. |
| Accuracy |
FID Instrument–±10 % of reading or ±1.0 ppm, whichever is greater, from 1–10,000 ppm
PID Instrument–±20 % of reading or ±0.5 ppm, whichever is greater, from 0.5–500 ppm |
| Battery Life |
10 hours at 0 °C |
| Battery Type |
Lithium-ion |
| Calibration Kit |
Part Number for FID: CR009UY
Part Number for dual detector: CR012UH |
| Computer Requirements |
USB port, Windows XP operating system or higher |
| Concentration |
FID: 0–30,000 ppm (methane)
PID: 0–2000 ppm (isobutylene) |
| Data Points |
Auto mode: one per second to one per 999 minutes, user selectable VOC or FE Mode: two to 30 seconds, user selectable |
| Depth (Imperial) |
4 in. |
| Depth (Metric) |
10.2 cm |
| Description |
TVA2020 Toxic Vapor Analyzer |
| Detection Limits |
The minimum detectable level is defined as seven times the standard deviation of peak-to-peak noise.
PID Instrument – 0.5 ppm of isobutylene
FID Instrument – 0.5 ppm of methane |
| Flow Rate |
One liter per minute, nominal at sample probe inlet |
| Frequency |
50/60 |
| Fuel |
99.99 % H2 for FID |
| Height (Imperial) |
11.5 in. |
| Height (Metric) |
29.2 cm |
| Inputs |
Bluetooth™, USB |
| Outputs |
Bluetooth™, USB |
| Portable Operation Time |
Minimum 10 hours |
| Repeatability |
FID Instrument +/- 2 % at 500 ppm of methane
PID Instrument +/- 1 % at 100 ppm of isobutylene |
| Response Time |
PID Instrument – Less than 3.5 seconds for 90 % of final value, using 500 ppm of isobutylene
FID Instrument – Less than 3.5 seconds for 90 % of final value, using 10,000 ppm of methane |
| Serial Interface |
USB |
| Temperature Range (Imperial) |
14–113 °F |
| Temperature Range (Metric) |
-10–+45 °C |
| Voltage |
100–230 V |
| Warranty |
One year from date of shipment |
| Weight (Imperial) |
FID only 9.2 pounds, Dual 9.4 pounds |
| Weight (Metric) |
FID only – 4.17 kg
Dual – 4.26 kg |
| Width (Imperial) |
9 in. |
| Width (Metric) |
22.9 cm |
| Components Measured |
Most Organic and Inorganic Compounds |
| Type |
FID or PID/FID |
| Unit Size |
Each |
Videos
Learn how to build a Leak Detection and Repair (LDAR) Program and take a look at the MIC-6 Multi Instrument Calibrator, which works flawlessly with the industry-leading TVA2020 to enhance accuracy and save time while monitoring LDAR compliance.
Fugitive Emissions Regulations. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Toxic Vapor Analysis. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Overview of the EU Methane Regulations for the Energy Sector. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments

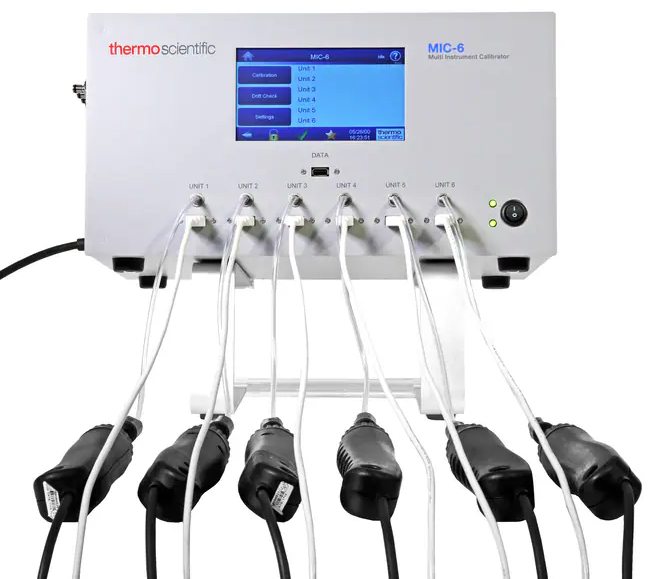

Thermo Scientific™ Multi Instrument Calibrator - MIC-6. Video Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
