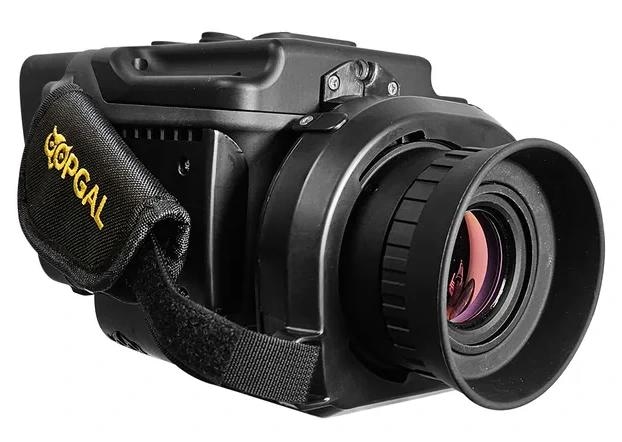

Presenting the world's most sensitive portable OGI camera: the OPGAL EyeCGas™ Optical Gas Imaging Camera. It is designed to quickly identify fugitive gas emissions from more than 400 VOC and hydrocarbon gases, such as CO2 and methane. With its unmatched connectivity, sophisticated thermography, and multi-spectral filters for adaptable usage in challenging conditions, this camera is inherently safe.
Real-time gas detection and measurement will improve safety and guarantee adherence to EPA regulations. Enjoy free firmware upgrades for ongoing development and invest in dependability with a four-year guarantee.
The OPGAL EyeCGas™ Multi Optical Gas Imaging Camera is intended to guarantee environmental safety and transform the detection of gas leaks. The most sensitive OGI camera on the market, this cutting-edge handheld camera can identify more than 400 hydrocarbon and volatile organic compound (VOC) gases, including CO2 and methane.
By offering real-time gas detection and quantification, the EyeCGas™ Multi is ideal for use in a variety of industrial applications and improves operational safety while maintaining regulatory compliance.
Key Features and Benefits
- Superb sensitivity: The most sensitive handheld optical gas imaging camera in the world, the EyeCGas™ Multi can identify even the tiniest gas leaks
- Intrinsically safe: Approved for use in dangerous settings, guaranteeing dependability and safety throughout operations
- Sophisticated connectivity: Enables smooth communication and data transmission with real-time data integration and sophisticated connectivity choices
- Versatile use: Can be employed in a variety of settings and applications, thanks to its multispectral filters and sophisticated thermography
- Regulatory compliance: Assures compliance and prevents expensive fines by assisting in meeting EPA criteria for fugitive gas emissions
- Durable design: Designed to survive hard settings, with a strong structure and great resistance to environmental variables
- Warranty and support: Includes a four-year warranty and free firmware upgrades, assuring long-term dependability and continual development
Intended Use
The EyeCGas™ Multi is ideal for detecting and measuring gas leaks across sectors such as oil and gas, petrochemicals, and environmental monitoring. It improves safety and operational efficiency by offering accurate and rapid gas detection.
Includes
- EyeCGas™ Multi Optical Gas Imaging Camera: The main device for gas detection
- Charger: For recharging the battery pack
- User manual: Comprehensive guide for using the camera
- Carrying case: For safe and convenient transportation
- Battery pack: Rechargeable battery for extended use
The OPGAL EyeCGas™ Multi Optical Gas Imaging Camera is a dependable solution for detecting gas leaks while maintaining environmental safety and regulatory compliance. Invest in cutting-edge technology to safeguard both the company and the environment.
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| Specifications |
| Accuracy |
At least ± 1 ° (0– 100 °), ± 2 % (> 100 °), ± 2 ° (-20–0 °) |
| Battery Life |
> 4.5 hours continuous operation |
Certifications/
Compliance |
Hazardous Location Compliance - CSA C22.2 No. 213-M1987, NonIncentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX. Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85 ° DCSpectral Range 3.1–4.4 μm. Optical filters Std. 3.2– 3.5 μm; Long range 3.3– 3.6 μm; CO2 4.1– 4.4 μm |
| Color |
Gray and black battery |
| Detector Type |
Cooled High Sensitivity, 320 x 240 pixels |
| Dimensions (L x W x H) |
9 x 4.3 x 5.1 in. (230 x 110 x 130 mm) |
| Display Type |
3.5 in. color LCD 640 x 480; six color palettes (Rainbow, Iron, ISO red, ISO green, Grey Scale, and Vivid) |
| For Use With (Application) |
Image processing VOC gas quantification for desktop or handheld application (offline/online operation) |
| Humidity Range |
IEC 60068-2-30 Temp. 25 °/40 °
Humidity 95 % RH |
| IP Rating |
IP65 |
| Measurement Range |
Spot temperature measurement -20 °C to +350 °C |
| Mounting Options |
Tripod mounting UNC 1/4 in., rotation safe |
| Temperature Range (Metric) |
Operating Temperature Range: -20 °C to +50 °C |
| Voltage |
7.4 V |
| Weight (Imperial) |
5.9 lb. |
| Weight (Metric) |
2.6 kg |
| Type |
Gas Detector |
| Unit Size |
Each |
