May 11 2010
Soenso Energy offers the Schüco Slim V Plus flat plate solar thermal collector. This solar collector is used in thermal hot-water systems. The sunselect absorptive coating provided over the module increases the energy absorption and thermal insulation and reduces energy loss. The twisted copper piping utilized in the module uses non-freezing propylene glycol as medium for heat transfer.
The darker anodized surface of this thermal collector mixes logically with any type of rooftop. The low-iron glass utilized in the thermal collector increases the light transmission rate. The light-weight design of this model permits easy transportation.

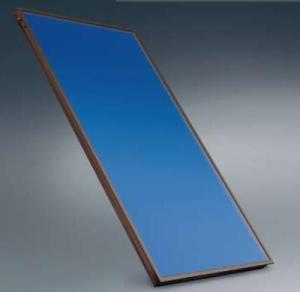

Schüco Slim V Plus Flat Plate Solar Thermal Collector
The Schüco Slim V Plus flat plate solar thermal collector provided by Soenso Energy has a total collector surface area of 2.32 m² and this collector measures 2039 mm x 1140 mm x 56 mm and weighs 40 kg. The heat loss coefficient of this module is rated as k1= 3.71 W/m²K; K2 = 0.016 W/m²K², its incident angle modifier is K(50) = 0.90 and thermal output is 1.64 kWth. The volume of heat transfer fluid used in this model is 1.6 L, the minimum volume flow is 2.5 L/min and a maximum number of five collectors are kept in series. The stagnation temperature of this model is 194ºC and the maximum operating temperature is 120ºC.
The sensor wells of this model are located on both sides of collector to check correct resistance capacity. The Schüco Slim V Plus flat plate solar thermal collector meets the certificate requirements of SRCC OG-100, CE, DIN EN 12975-2, DIN CERTCO, and
EC Guideline 97/23/EC.
Source: http://www.soenso.com
