Jul 6 2010
ET Solar offers the ET-M53685 85W monocrystalline photovoltaic module. The PV module consists of 125 x 125 mm sized square cells arranged 36 cells in series. The cells are pasted over a board and covered by a translucent, low iron and tempered glass with a non reflecting type of coating and placed in a strong anodized aluminum frame to withstand wind load up to 177 km/h.
The ET-M53685 85W monocrystalline photovoltaic module from the ET Solar offers increased performance even under low light conditions and has a module conversion efficiency of 14.7%.

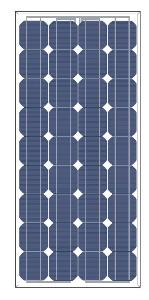

ET-M53685 85W Monocrystalline PV Module
The ET-M53685 85W monocrystalline photovoltaic module offers a peak power of 85 W, a cell efficiency of 16.38%, module efficiency of 12.94%, a maximum power voltage of 18.05 V, a maximum power current of 4.71 A, an open circuit voltage of 21.94, a short circuit current of 5.29 A and a maximum system voltage of 1000 VDC. This module incorporates three bypass diodes to reduce the local heating in the shaded area of the module thus reducing the reduction in array output. The power tolerance of this module is -1 to +3% and its series fuse rating is 10 A. The normal operating cell temperature of this module is 44.4 ± 2ºC.
The ET-M53685 85W module has a dimension of 1205 mm x 545 mm x 35 mm and weighs 8.23 kg. This module can bear a maximum load of 5400 p.
Source: http://www.etsolar.com
