May 12 2010

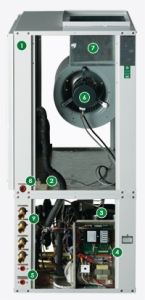

GeoComfort offers GT Combination Series geothermal systems. These geothermal systems are available in GT036, GT048 and GT060 models with varying heating and cooling properties. The GT036 model has forced air heating, air cooling and hydronic heating features. This model incorporates a two-stage compressor and changeable speed ECM fan.
This heating system is designed to operate with varying incoming water temperatures ranging between 25°F and 110°F. The cabinet of this model is powder coated, fixed using bolts for integrated design and has 3/8 inches recycled blue jean insulation for noiseless working. The compressor and blower utilized in this model are rubber mounted for reduced vibration and noise.
GT Combination Series Geothermal Systems
The GT036 model geothermal system provided by GeoComfort incorporates coated air coils for increased life and rust proof stainless steel drain pans for easy cleaning. The insulated refrigerant circuit in this model utilizes environment friendly R-410A refrigerant. The air panels installed in this model can be removed for easy cleaning. The GT036 model when fully loaded provides 31,400 Btu/hr and 3.6 COP heating and 39,400 Btu/hr and 18.0 EER cooling. Under partly loaded conditions this model provides 20,900 Btu/hr and 4.5 COP heating and 26,300 Btu/hr and 24.0 EER cooling.
The optional features available in the GT036 geothermal model include cupro-nickel heat exchanger, field installed internal electric heat and hot water generator. This model is ETL certified to UL & CSA standards and AHRI certified to ISO standards.
Source: http://www.geocomfort.com/gt-combo
