Jun 30 2010
SolarWorld offers the Sunmodule mono black. The monocrystalline silicon solar modules are available in SW 220, 225, and 230 versions with a maximum power production capacity of 220, 225 and 230 W, respectively.
The solar panel utilized in the module is fixed in a patented box channel frame tested for stiffness in bending and torque. The box is laminated by a 4 mm glass that is set deep in the frame channel and fastened precisely with adhesive to prevent water seepage. The frame along with the solar film is press fit for increased strength and years of usage.

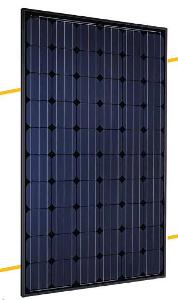

Sunmodule Mono Black Monocrystalline Silicon Solar Module
The length × width × height measurement of the SolarWorld Sunmodule mono black module is 1675 mm x 1001 mm x 34 mm and weighs 22 kg. This module incorporates 60 square cells each measuring 156 x 156 mm per module. The Sunmodule with a power tolerance of ± 3% incorporates IP65 junction box and MC type 4 connector. The SW 230 module under standard test conditions offers a Pmax of 230 W a Vmpp of 30 V, an Impp of 7.68 A, a Voc of 37.4 V, and an Isc of 8.16 A. Under normal operating conditions this module offers a Pmax of 167 W a Vmpp of 27.2 V, an Impp of 6.14 A, a Voc of 33.9 V, and an Isc of 6.58 A.
The system integration parameters of this module include a maximum system voltage of 1000 VDC and a maximum fuse rating of 15 A.
Source: http://www.solarworld-usa.com
