Apr 15 2010
Thermo Technologies provides a range of solar powered products including flat plate solar collectors. The SOL 25 Plus flat plate solar collector is made using advanced German technologies. This flat plate collector is available with a low profile in a thickness of 3 inches. It features a selective absorber coating and copper absorber, which is combined with passages for the heat transfer fluids. It is built from an aluminum frame that is resistant to seawater. The SOL 25 Plus has a tempered glass design for improved light transmission.

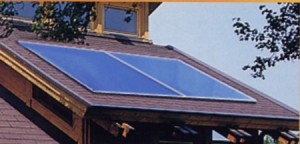

SOL 25 Plus flat plate solar collectors
The SOL 25 Plus flat plate solar collector has a lower depth compared to other collector panels, making it suitable for architectural designs. The 27 sq. ft. net absorber surface produces 2000 watts per panel. The absorber of this solar collector offered by Thermo Technologies is insulated. The collector also features tempered glass with a light transfer coefficient. The heat transfer pipes of the system are built of copper.
The SOL 25 Plus solar collector covers a total surface area of 29.06 sq. ft. with a net effective surface area of 26.91 sq. ft. The output range of the collector is 0 - 2000W. This flat plate solar collector provided by Thermo Technologies has a transfer flow rate of 50-300l/h. It has a maximum operating pressure of 87psi, working operating pressure of 50.7psi and is tested to pressure at 160psi. The SOL 25 Plus is available in 2233mm x 1223mm x 78mm dimensions and weighs up to 50kg without the heat transfer fluid.
Source: http://thermomax.com/
