May 14 2010
Conergy offers the Conergy 123 W high power multi-crystalline photovoltaic solar module. This module is offered with ready connectivity for easy on-field installation.
The frame of this PV solar module is constructed utilizing tough aluminum frame and is suitable for use in all types of weather conditions. The Conergy 123W solar module incorporates 36 numbers of multi-crystalline cells that are connected in series.

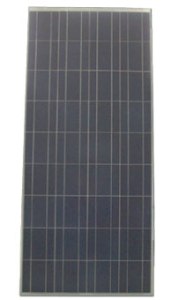

Conergy 123W High Power Multi-Crystalline PV Solar Module
The length x width x height dimensions of the Conergy 123W provided by Conergy is 1466 mm x 660 mm x 38.1 mm and weighs 11.8 kg. This solar module is designed to offer a maximum power of 123 W, a power tolerance of +/- 3%, a max power voltage of 17.2 V, a max power current of 7.2 A, an open circuit voltage of 22.1 V, and a short circuit current of 7.54 A. This solar module withstands a dielectric voltage of 2200 max V-DC; its maximum system voltage is DC 600 V and uses a maximum 10 A series fuse. The operating temperature of this module is -40 to +90°C and the storage temperature is -40 to +90°C.
The Conergy 123W photovoltaic solar module qualify the safety standards of | UL Listings 1703, hazardous locations Class 1, Div 2, Groups A, B, C and D. The product is manufactured in an ISO 9001-certified factory.
Source: http://www.conergy.ca/
