Jun 8 2010
Acme Solar Works offers SunWize 2880W Grid-Tie Systems with Battery Backup. This system features a Mitsubishi 180 W solar module mounted on a UniRac SolarMount flush-mounted roof support arrangement, a MidNite Solar indoor enclosure, SolaDeck combiner with circuit breakers, a PV array copper grounding system and a patented MC cable wire management system.
For the power management this module incorporates a SunWize solar ready battery system with an OutBack GFX series sealed or vented type of inverter/charger, an OutBack FM60 controller, and an OutBack Mate digital system monitor.

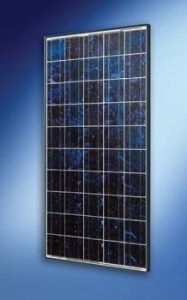

Mitsubishi 180 W solar Module
The Mitsubishi solar modules utilized for generating power in the SunWize Grid-Tie Systems incorporate quality system components to produce optimum power. The pre-fabricated SunWize Solar Ready battery system utilized in the module has AC/DC disconnect feature, a 60A PV charge controller and a 63A PV ground fault protection. The SolarMount support arrangement used in the module includes structural arrangement for flush mounting and use MC cables for long term usage. The SolaDeck PV J-box/string combiner kept in a lockable indoor battery enclosure is easily accessible for maintenance. This module features a common AC wiring. An optional PSX240 transformer is offered to use 240 V applications.
The SunWize 2880W Grid-Tie Systems from Acme Solar Works is offered with AGM sealed batteries to generate 13 or 26 kWh power. The width x height x depth dimensions of enclosure batteries is 32 in. x 58 in. x 15 in and the total system weighs 920 lbs with batteries.
Source: http://www.acmesolarworks.net
