Jun 30 2010
SOLON Corporation offers the SOLON Blue 270/09 Polycrystalline solar modules. The solar modules are available in 270, 275, 280 and 285 W capacity ranges.
The SOLON Blue 270/09 module incorporates extremely effective polycrystalline cell technology and offers 14.4% module efficiency. The solar film used in this module is covered by a transparent tempered safety glass measuring 4 mm in thickness and a white composite film is pasted on the back and the cell encapsulation is performed using EVA.

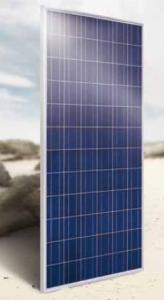

SOLON Blue 270/09 Polycrystalline Solar Module
The solar module is kept inside a twin wall shaped anodized aluminum frame with provision for drainage holes. This solar module is tested for a maximum load capacity of 5400 Pa. The height × width × depth measurement of the SOLON Blue 270/09 module offered by the SOLON Corporation is 1980 mm x 1000 mm x 42 mm and weighs 30 kg. The number of cells used per module is 72 and each square cell measures 156 x 156 mm. The Tyco junction box used in the module incorporates bypass diodes and the solar cable used is prefabricated with Tyco Solarlok connector.
The SOLON Blue 270/09 solar module offers a Pmax of 270 W with a module efficiency of 13.60%, a Vmpp of 35.45 V, an Impp of 7.61 A, a Voc of 43.62 V, an Isc of 8.08 A, a series fuse rating of 15 A and a maximum system voltage of 600 V. This solar module conveniently operates in temperatures ranging from –40 to +85°C. This module meets the standard and quality registration requirements of UL, CEC and FSEC.
Source: http://www.solon.com
